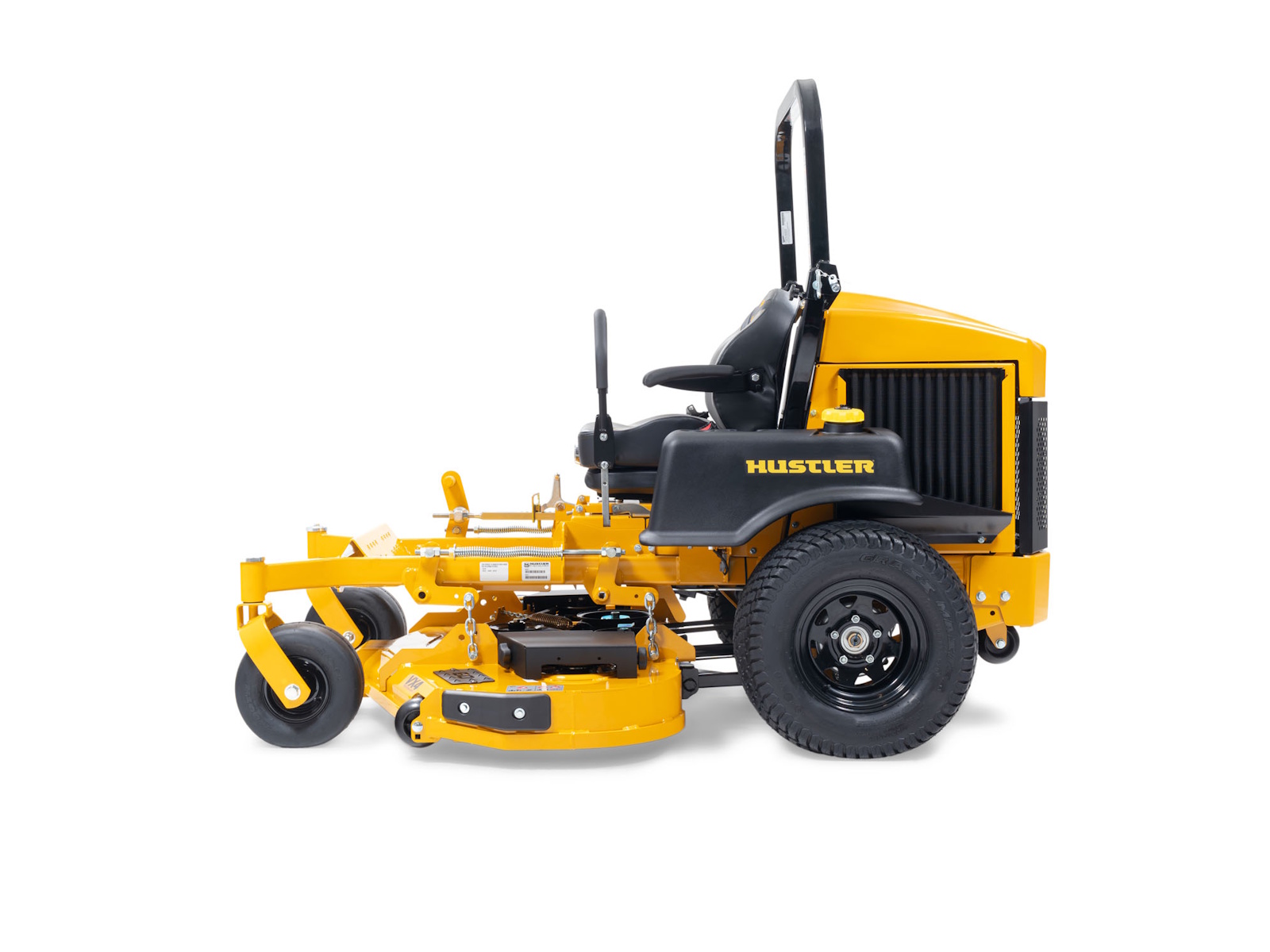

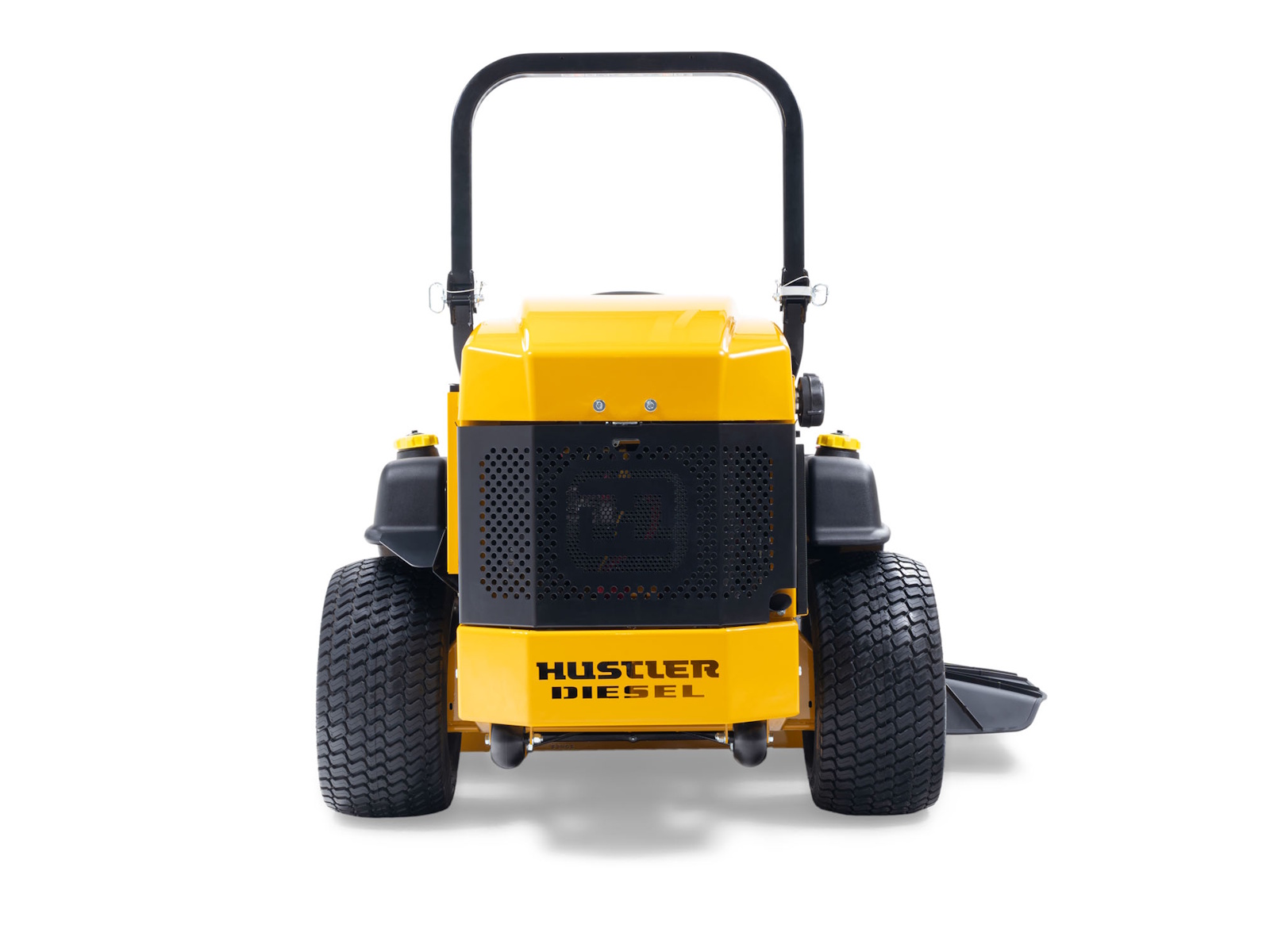

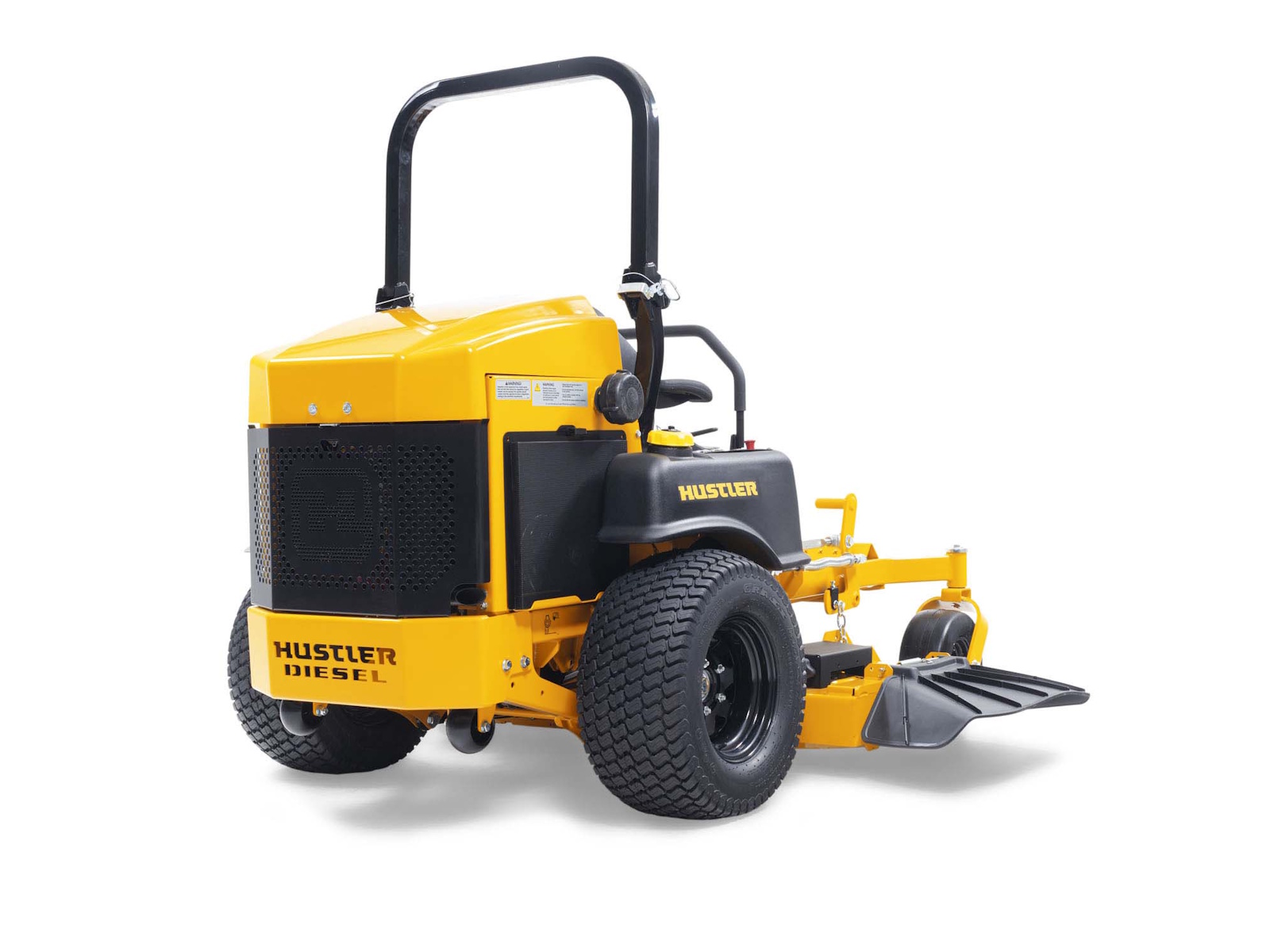

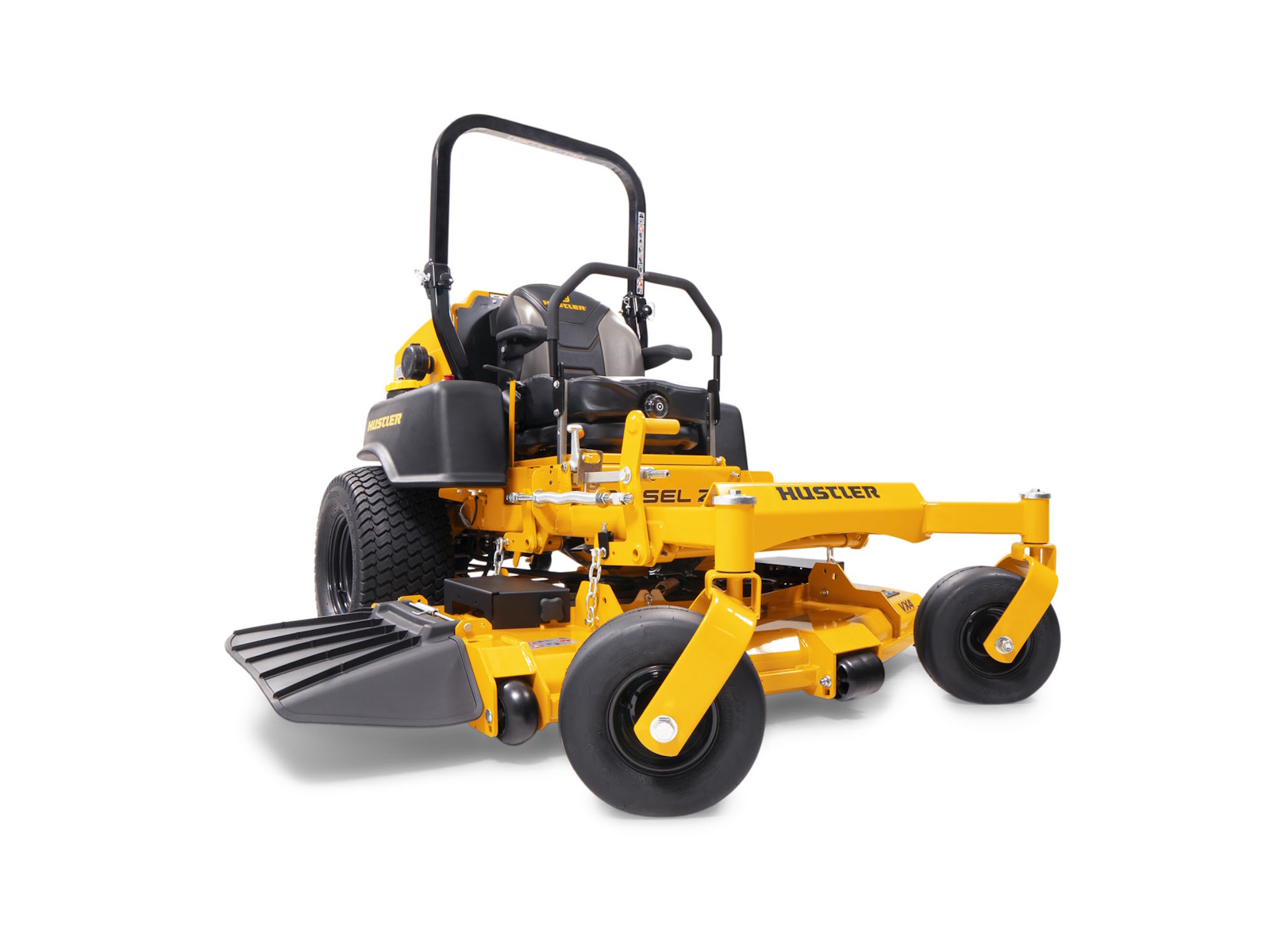

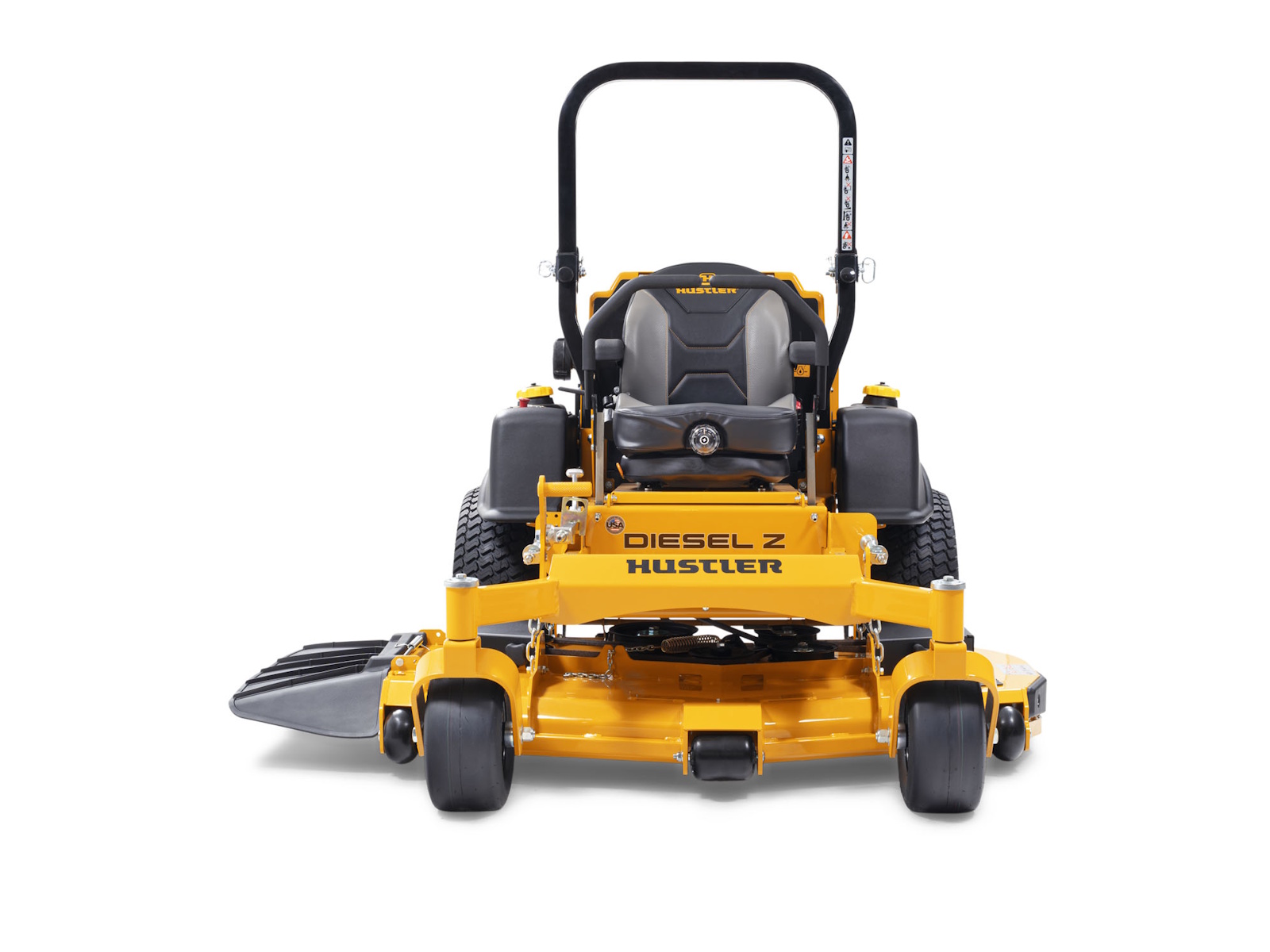

2024 Hustler Diesel Z Perkins / 60” Rear Discharge

Accessories

Aluminum Side Bagger: Easy-on, easy-off bagger with 3.3-bushel or 4.96-bushel capacity options.

Fabric Side Bagger: Easy-on, easy-off bagger has a 3.5-bushel capacity.

Light Kit: Extend your productivity into the late hours with our optional light kit. Kit contains two high-quality 12-volt lights with a switch that mounts in the instrument panel.

Hitch Kit: Bolt-on hitch with 7/8" hole. Will accept any standard ball.

Stripe Kit: Helps provide a professional manicured finish to your lawn.

Beacon Kit: Flashing beacon lights are sometimes required when mowing in high traffic or to make mowing crews more visible. Mounts on the ROPS.

Dual Anti-Scalp Wheels: Additional kit for increased deck scalping protection. Fixed position. Can be used in conjunction with the single anti-scalp wheel kit.

Sand Kit: A deck kit that helps withstand the heavy use in sandy conditions.

Flasher Kit: Flasher kit for increased visibility and safety.

Electric Deck Lift: Raise and lower the deck with the flip of a switch. This electric lift kit consists of simple bolt on hardware and switch installation.

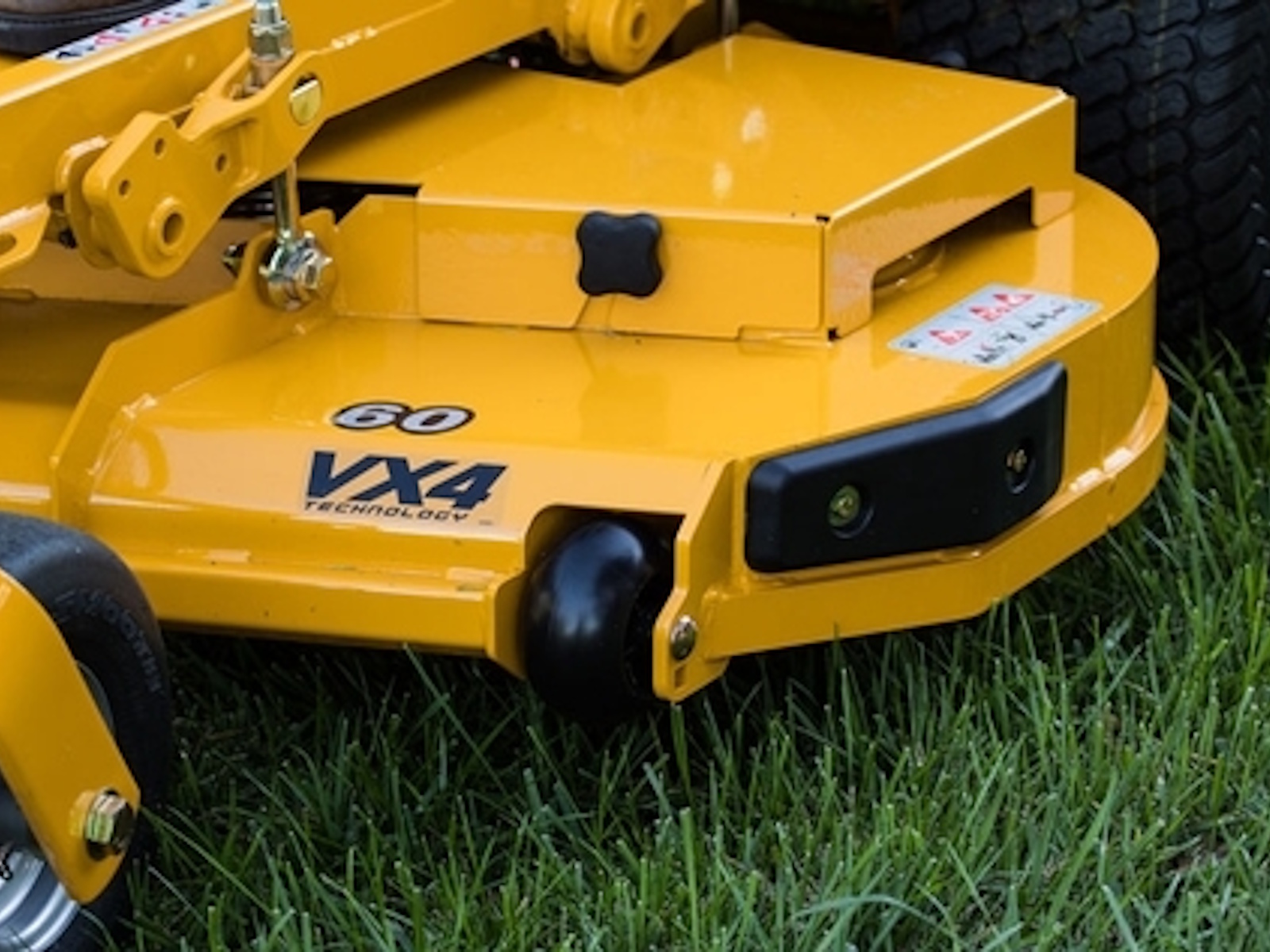

Single Anti-Scalp Wheel: Additional kit for increased deck scalping protection. Two height settings. Can be used in conjunction with the dual anti-scalp kit.

Mulch Kit: Recycle clippings back into the soil and reclaim nutrients for your lawn.

Semi-Pneumatic Front Tires: Flat-free front tire option.

MICHELIN® X® TWEEL® TURF: The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. 60" and 72" X-ONE models, 60", 66" and 72" Super Z models only.

MICHELIN® X® TWEEL® TURF CASTER: The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.

Steering Lever Extension Kit: Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.

Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.

Key Specs

Engine Manufacturer: Perkins

Engine Horsepower: 25

Transmission: Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors

Fuel Capacity: 14.4 gal.

Ground Speed (Fwd): Up to 11.5 mph

Cutting Width: 60" Rear Discharge

Cutting Height: 1" to 5.5"

Front Tire: 13 x 6.5-6

Drive Tire: 24 x 12-12

Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

Engine

Engine Manufacturer: Perkins

Engine Horsepower: 25

Displacement: 1130cc

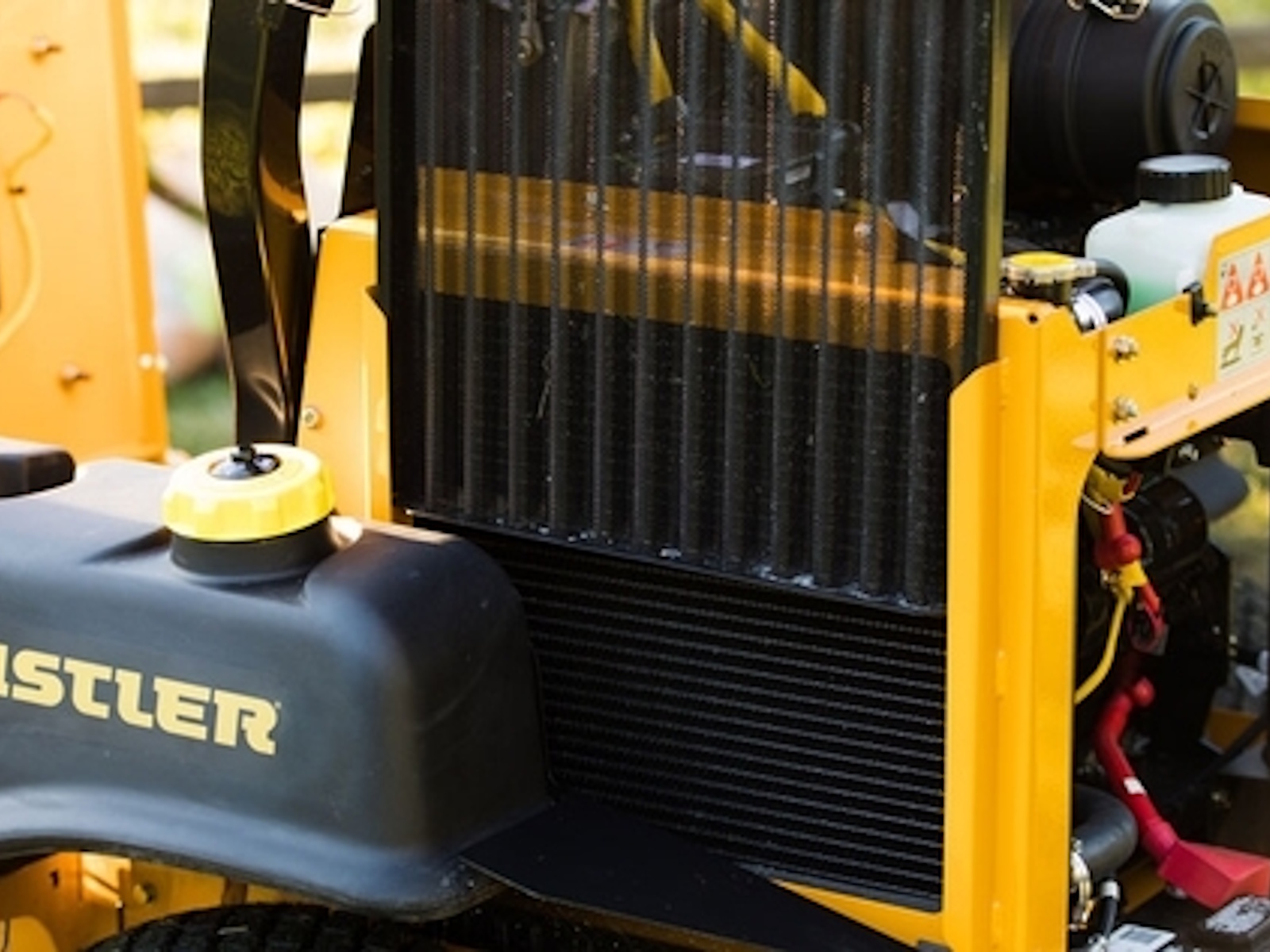

Cooling: Liquid cooled, direct-drive, mechanical cooling fan

Air Cleaner: Remote Canister

Engine Warranty: 3 Year Limited

Drive System

Type: Dual Hydrostatic

Transmission: Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors

Hydraulic Lines: Stainless steel Parker Seal-Loc Technology

Reservoir Capacity: 1.3 gallons

Hydraulic Cooling: Oil Cooler w/ 8" fan

Engine Warranty: 3 Year Limited

Fuel Capacity: 14.4 gal.

Ground Speed (Fwd): Up to 11.5 mph

Parking Brake: Integrated with steering levers

General

Seat: I3M Suspension Seat

Cup Holder: Yes

Dimensions

Front Tire (Inches): 13 x 6.5-6

Drive Tire (Inches): 24 x 12-12

Weight (Lbs): 1656, 1766 Rear Discharge

Height (Inches): 51, 69 w/ ROPS

Length (Inches): 86.8

Width W/ Chute up (Inches): 66

Tire-To-Tire Width (Inches): 56

Productivity (Acres Per Hour): 5.57

Warranty

5 Year / 1200 Hour (First 2 Years No Hour Limit)
