2024 Hustler Diesel Z Perkins / 72”
Get in Touch
Description

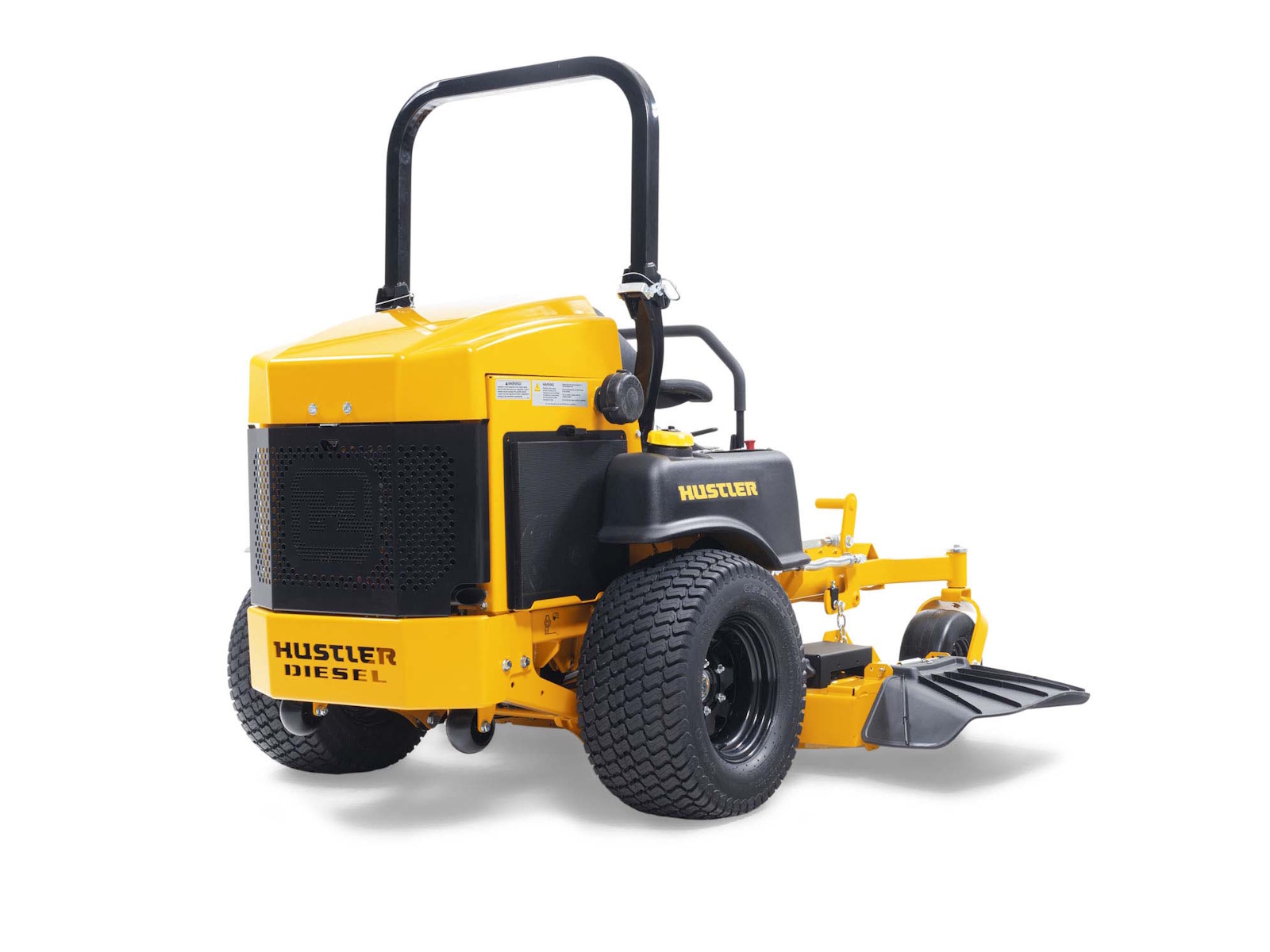

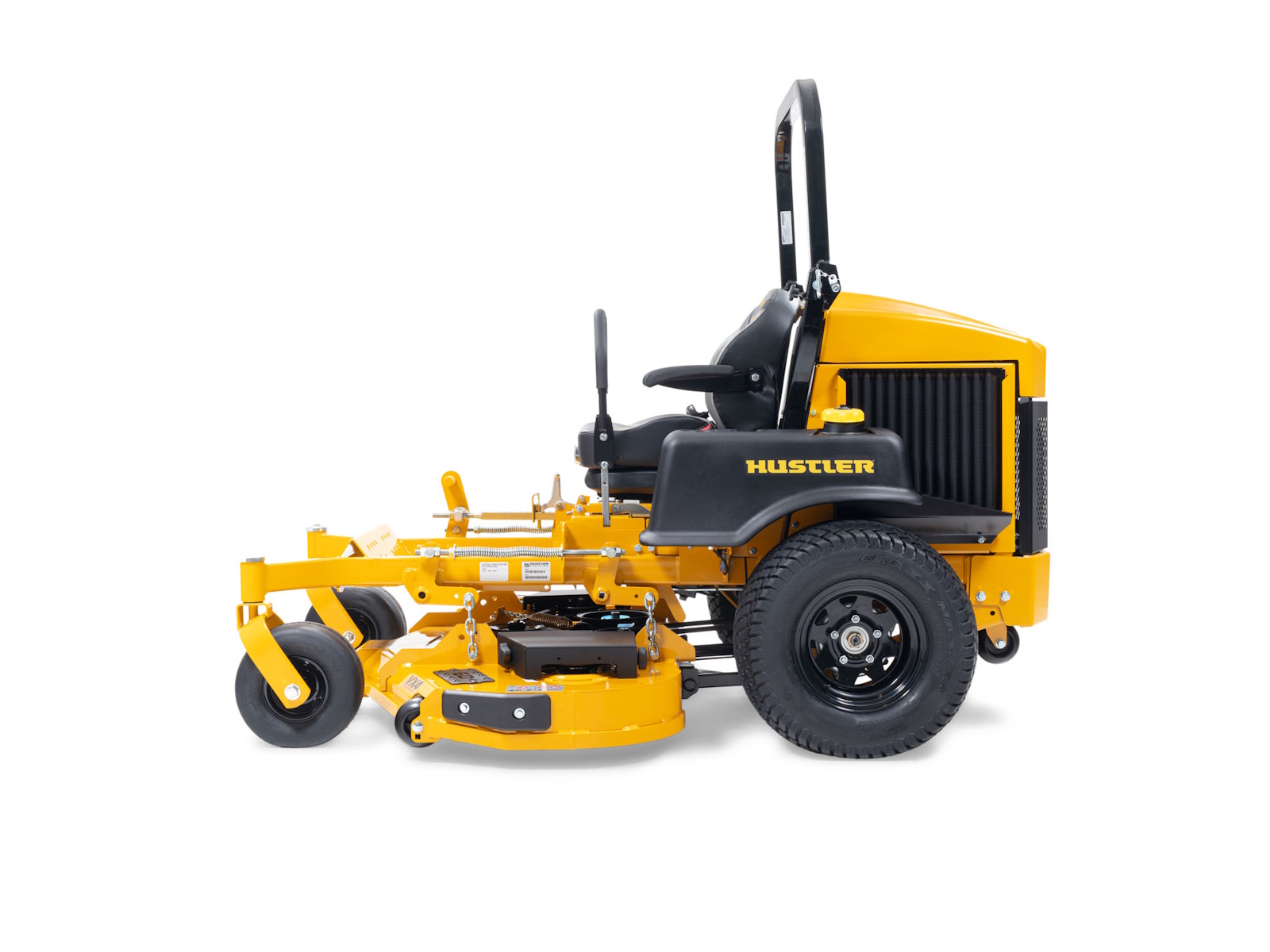

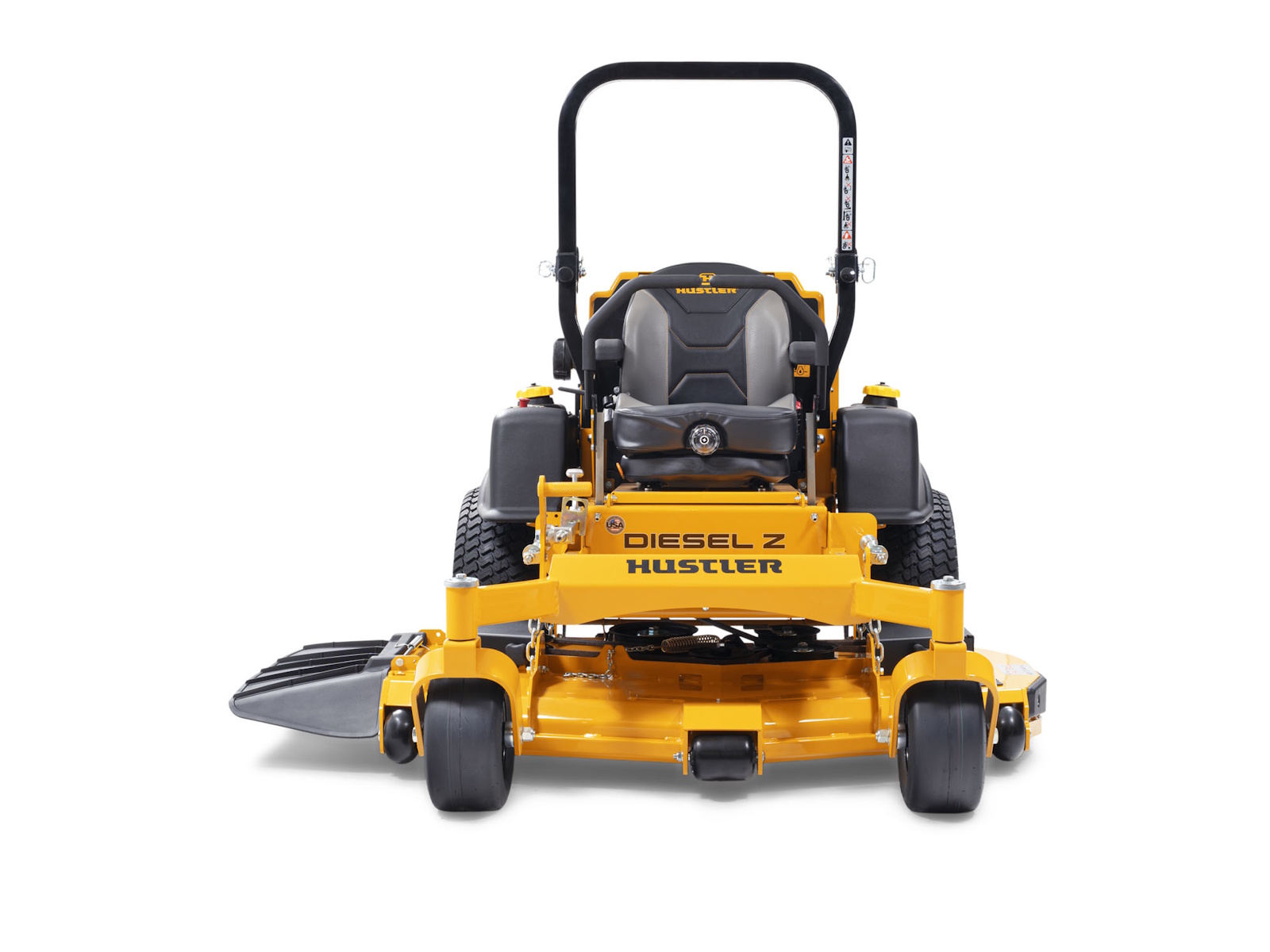

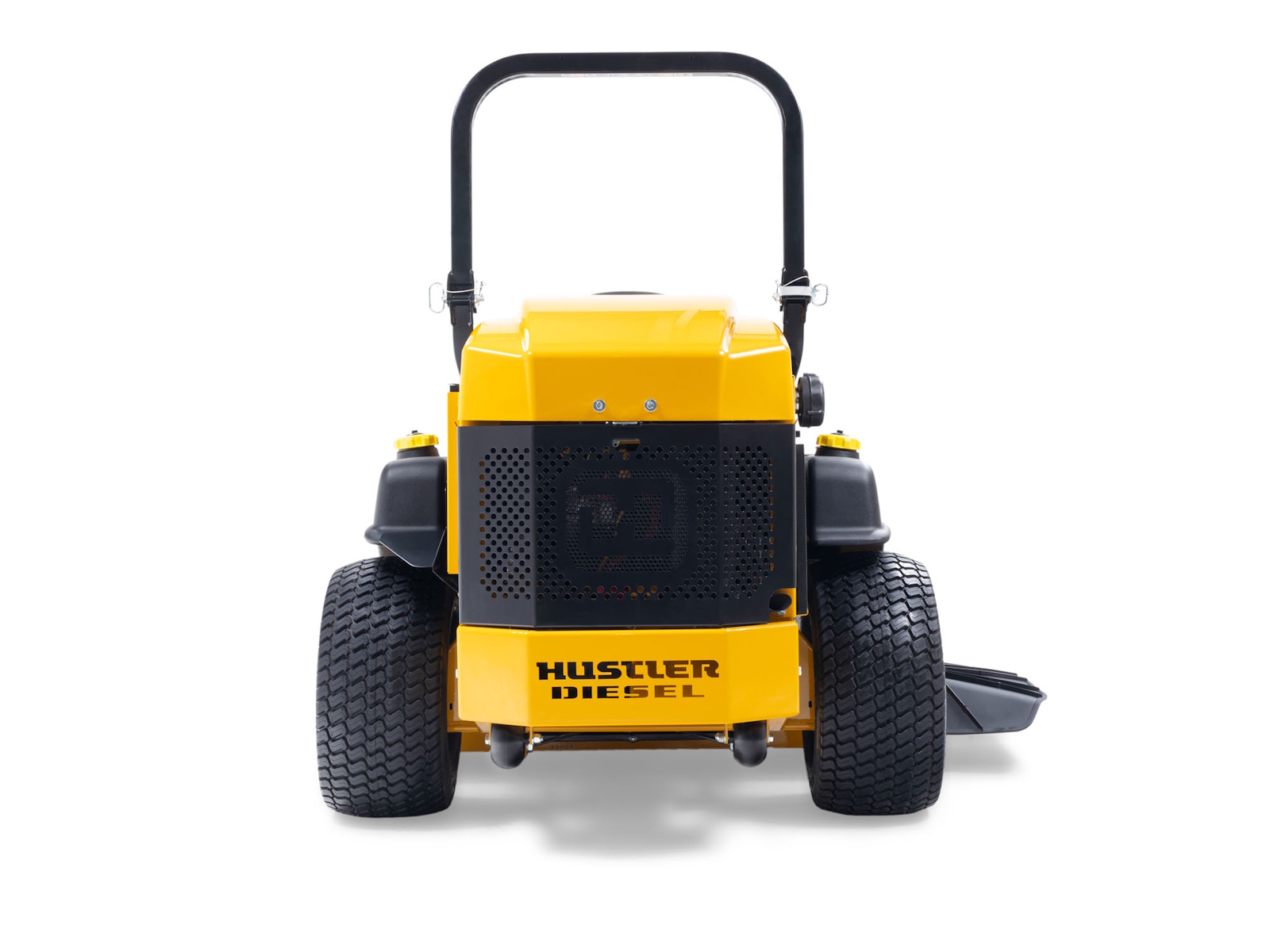

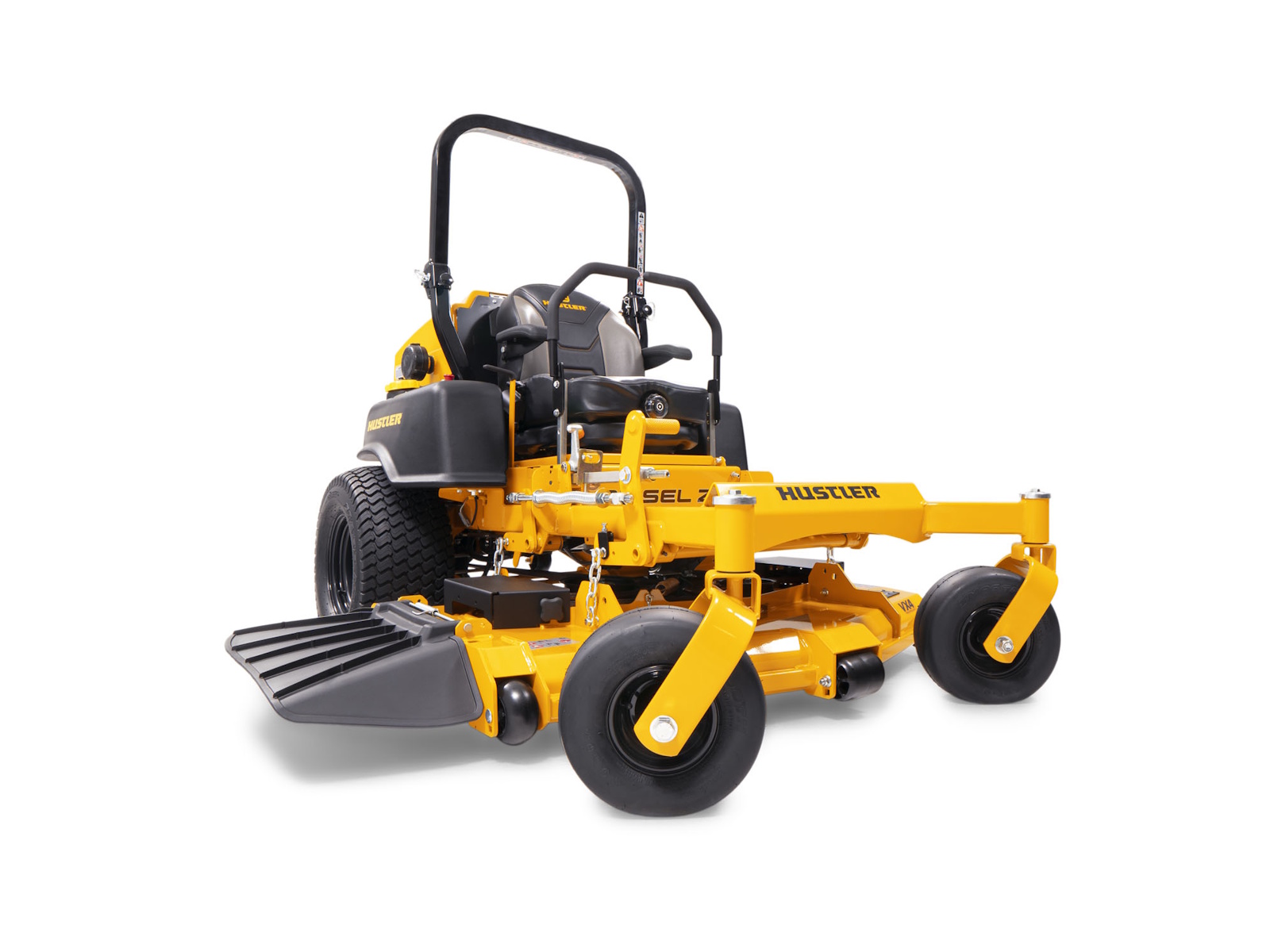

2024 Hustler Diesel Z Perkins / 72”
Diesel Power To Do Any Job.
The Hustler® Diesel Z gives you all the great features of a Hustler product paired with fuel-economy of a diesel.
Features May Include:
- Service Friendly Design
Designed to make maintenance and service simple and easy. - Patented Belt Drive System

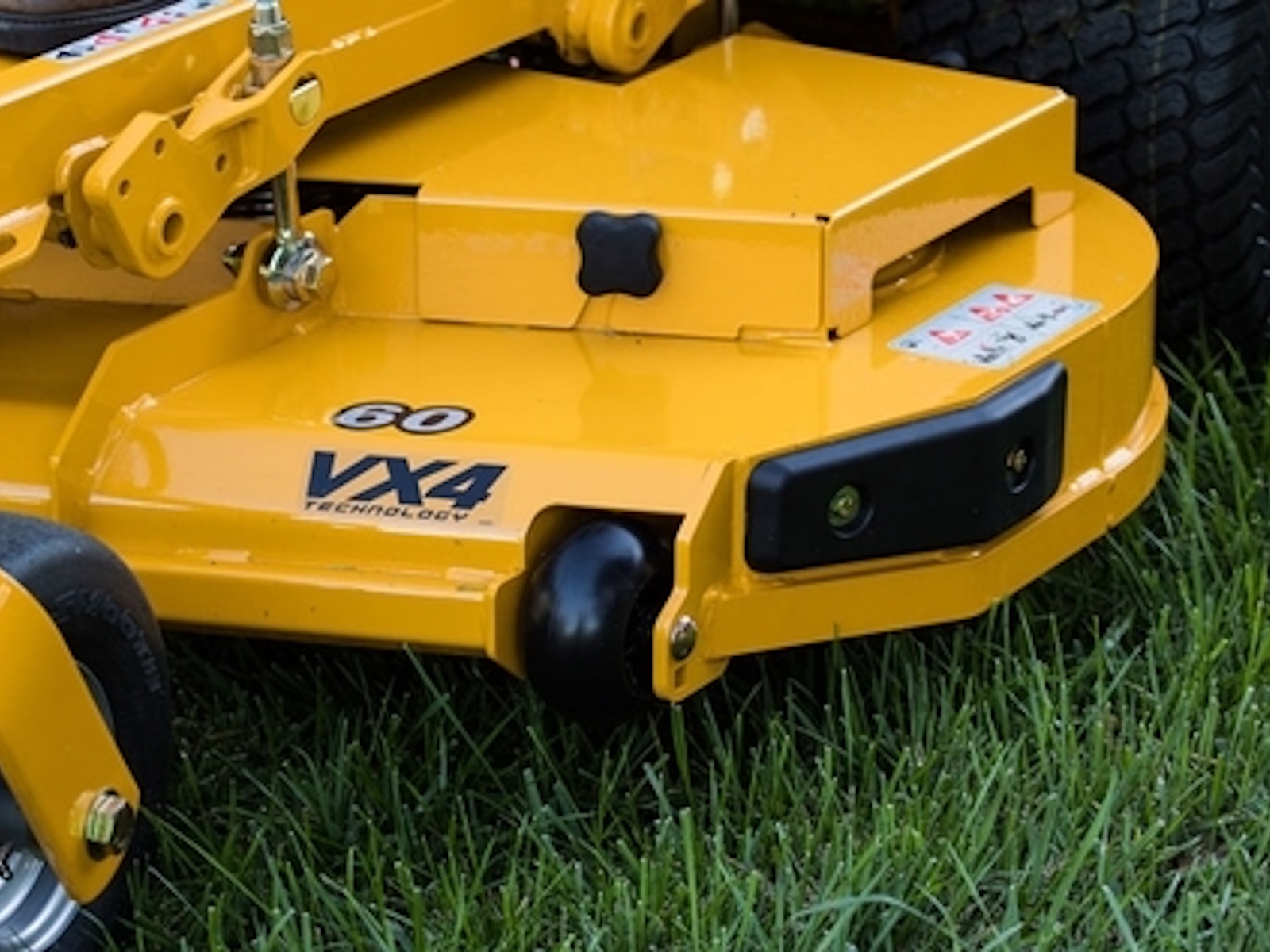

Provides up to three times longer belt life. - VX4® Deck
Fabricated steel deck engineered to move more grass at high speeds while maintaining cut-quality.
Dealer Notes
Key Specs
Engine Manufacturer: Perkins
Engine Horsepower: 25
Transmission: Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors
Fuel Capacity: 14.4 gal.
Ground Speed (Fwd): Up to 11.5 mph
Cutting Width: 72", 72" Rear Discharge
Cutting Height: 1" to 5.5"
Front Tire: 13 × 6.5-6
Drive Tire: 24 × 12-12
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Engine
Engine Manufacturer: Perkins
Engine Horsepower: 25
Displacement: 1130 cc
Cooling: Liquid cooled, direct-drive, mechanical cooling fan
Air Cleaner: Remote Canister
Engine Warranty: 3 Year Limited
Drive System
Type: Dual Hydrostatic
Transmission: Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors
Hydraulic Lines: Stainless steel Parker Seal-Loc Technology
Reservoir Capacity: 1.3 gallons

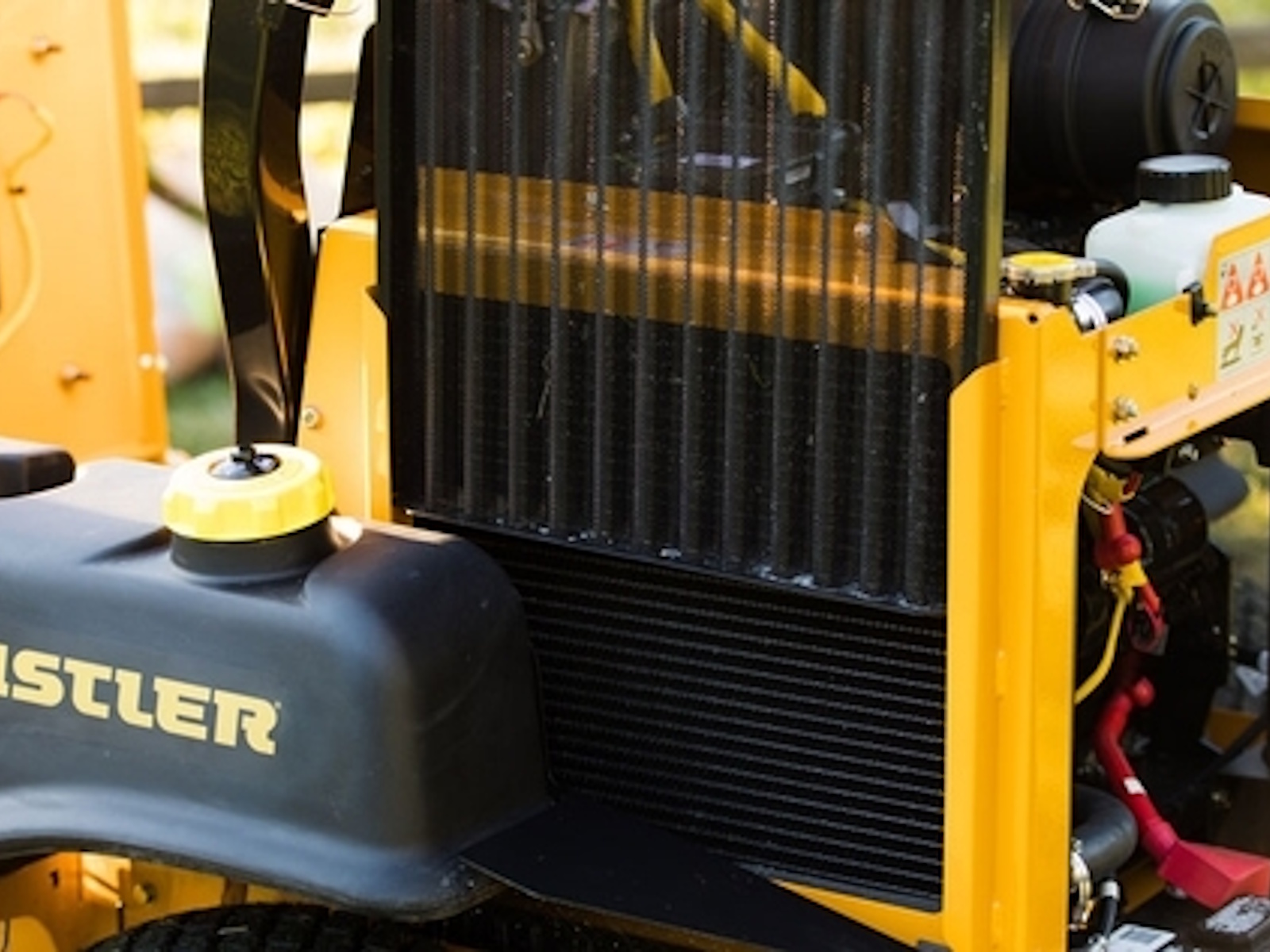

Hydraulic Cooling: Oil Cooler w/ 8" fan
Fuel Capacity: 14.4 gal.
Ground Speed (Fwd): Up to 11.5 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 72", 72" Rear Discharge
Cutting Height: 1" to 5.5"
Deck Depth: 5.5"
Deck Lift: Foot Operated
Number Of Blades: 3
Blade Length: 24.5"
Blade Tip Speed: 18,800
Spindles: Ductile cast iron with steel shaft and sealed ball bearings

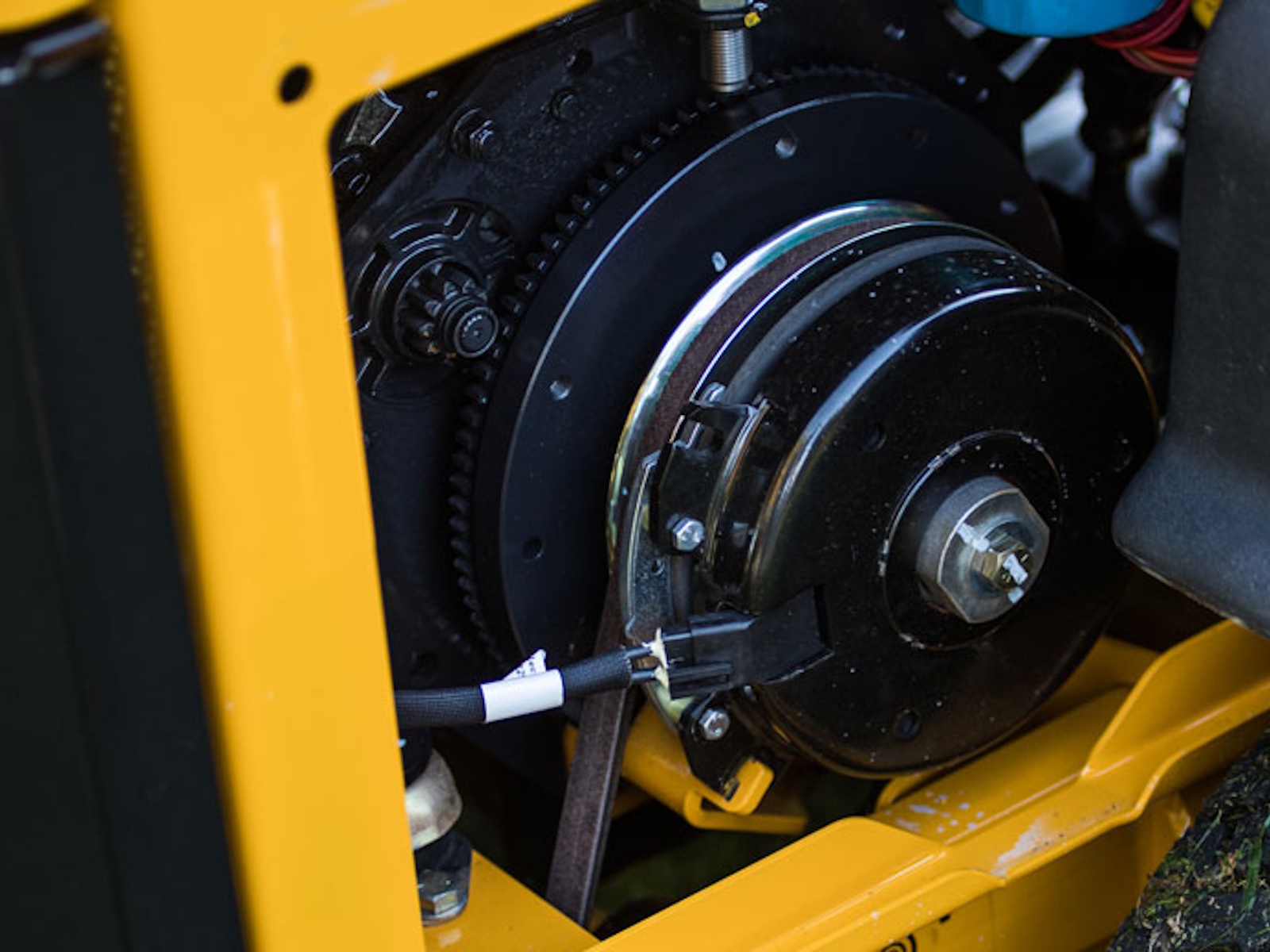

Deck Engagement: Electric PTO Clutch
Deck Material: 7 gauge welded steel
Spindle Mounts: Reinforced 7 gauge stamped disc
Impact Trim Area: Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5" x 375" steel bar
Construction
Frame: 1.5" X 3" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Tapered wheel bearings and debris cap
Front Caster Fork: Fabricated 1/2" steel
Dimensions
Front Tire (Inches): 13 x 6.5-6
Drive Tire (Inches): 24 x 12-12
Wing Tire (Inches):
Weight (Lbs): 1711, 1816 Rear Discharge
Height (Inches): 51, 69 w/ ROPs
Length (Inches): 90.4
Width W/ Chute Up (Inches): 78
Tire-To-Tire Width (Inches): 56
Productivity (Acres Per Hour): 6.68
General
Seat: I3M Suspension Seat
Cup Holder: Yes
Warranty
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Info
Industry
Power Equipment / Lawn
Make
Hustler
Model
Diesel Z
Trim
Perkins / 72”
Year
2024
Category
Commercial Lawn Mowers
Subcategory
Riding
Condition
New
Specifications
Fuel Capacity
14.4 gal.
Engine Type
Perkins
Transmission
Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors
Tires
Front: 13 x 6.5-6 | Drive: 24 x 12-12
Length
90.4
Engine Displacement
1130cc
Height
ROPS Down: 51 | ROPS Up: 69
Weight
1711
Power
25 HP
Width
Chute Up: 78 | Tire To Tire: 56
Warranty
5 Year / 1200 Hour | Engine: 3 Year Limited
Deck Size
72”
Cutting Width
72”
