2024 Hustler Raptor XDX Kawasaki FR691 / 54"
Get in Touch
Description
2024 Hustler Raptor XDX Kawasaki FR691 / 54"
Raptor XDX
The Raptor® XDX is at the top of Hustler's residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds. The heavy-duty XDX is backed by a 3yr / 300hr limited warranty and 1yr / 300hr commercial limited warranty.
Features May Include:
-
Welded Steel Deck
Welded fabricated steel deck helps add durability and can extend the mower's life. -
Wider Stance
Designed to provide ample room adding to the comfort for the operator. -
SmoothTrak Steering
Precision control designed to help trim and maneuver easily around obstacles. -
Bolstered Seat
Helps provide a comfortable ride with armrests and airflow to the back. -
Rubber Floor Mat
Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models. -
Fabricated Frame
Continuous one-piece 1½ inch by 3 inch welded tubular frame. -
Foot-Operated Deck Lift
Easily adjust the deck height between 1.5" - 4.5". -
Easy to Service
Flip-up seat pan, removable floor pan, vented pulley covers. -
Exclusive BigBite Rear Tires
We worked directly with the tire manufacturer on this design. -
Kawasaki® Power
Powered by a V-Twin Kawasaki® Engine. -

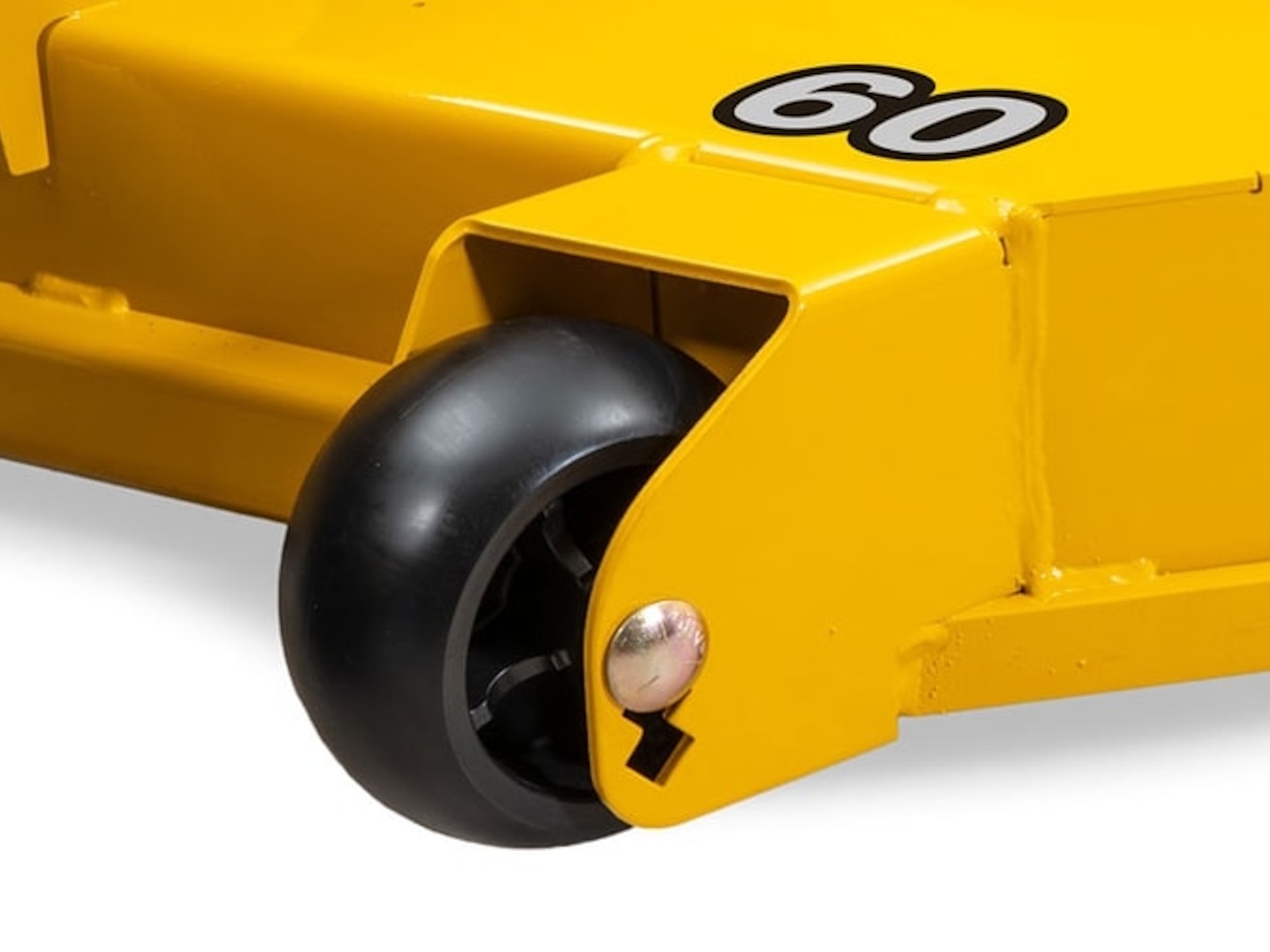

Commercial Grade Deck
10 gauge steel and 11 gauge front bull nose bumper designed for durability. Up to 60” deck sizes available. -

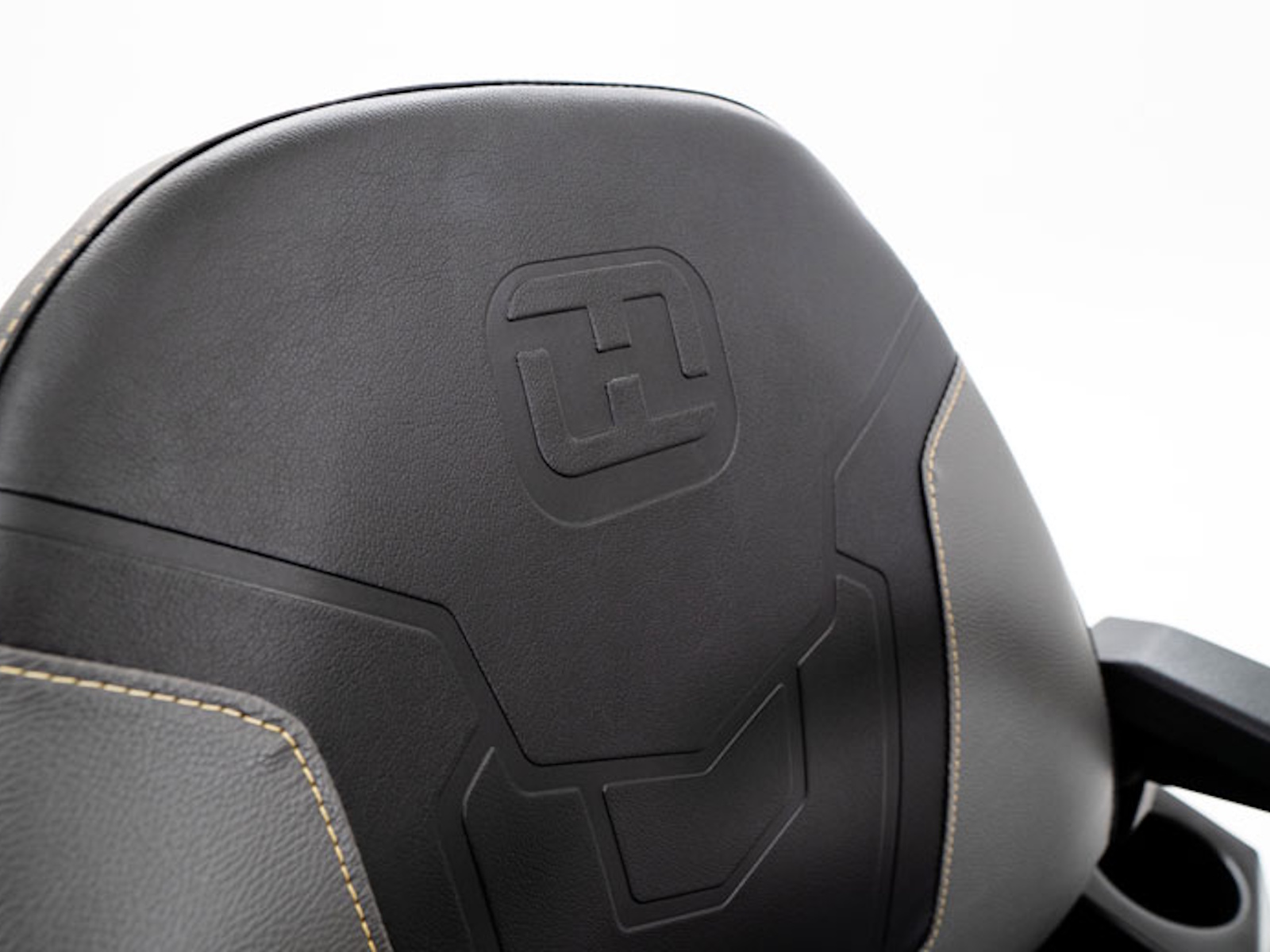

Extra High-back Seat
An extra high-back seat (compared to the Raptor X seat) with armrests. -

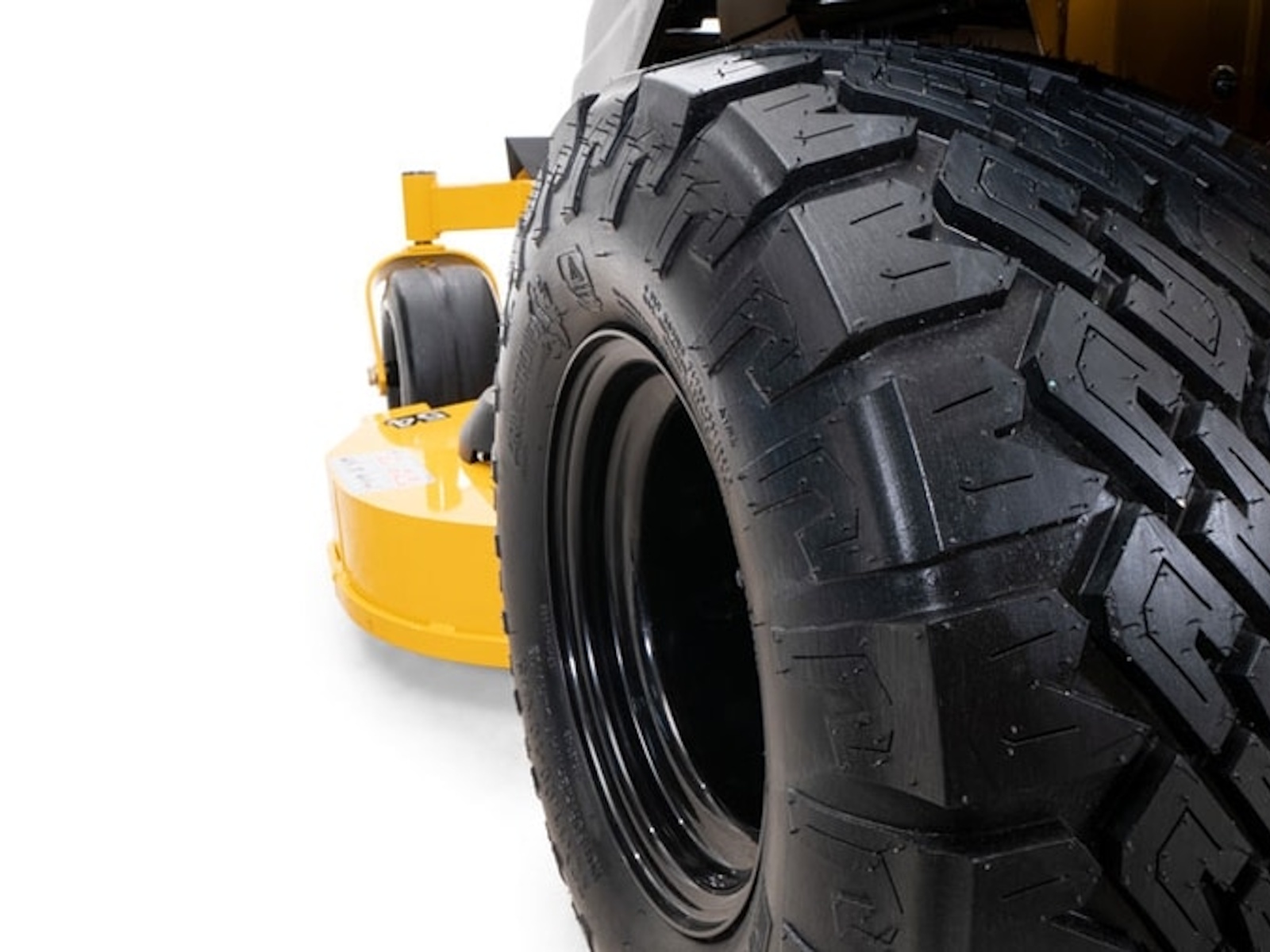

22" BigBite™ Tires
Aggressive tire to help handle tough jobs.
Dealer Notes
Features
22" Bigbite™ Tires: Aggressive Tire To Help Handle Tough Jobs.
Extra High-Back Seat: An Extra High-Back Seat (Compared To The Raptor X Seat) With Armrests.
Commercial Grade Deck: 10 Gauge Steel And 11 Gauge Front Bull Nose Bumper Designed For Durability. Up To 60” Deck Sizes Available.
Key Specs
Engine Manufacturer: Kawasaki FR691
Engine Horsepower: 23
Transmission: Hydro-Gear ZT-3100®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 8 mph
Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Front Tire: 13 x 6.5
Drive Tire: 22 x 11-10 BigBite™
Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
Engine
Engine Manufacturer: Kawasaki FR691
Engine Horsepower: 23
Displacement: 726cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-3100®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 8 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 54"
Cutting Height: 1.5" to 4.5"
Deck Depth: 5.0"
Deck Lift: Foot Operated
Number Of Blades: 3
Blade Length: 18.50"
Blade Tip Speed: 18,900
Spindles: Aluminum with 1" shaft and sealed ball bearings
Deck Engagement: Ogura GT1.5
Deck Material: Fabricated 10 gauge steel
Spindle Mounts: Reinforced 11 gauge steel
Impact Trim Area: 11 ga. formed channel w/ rolled edge
Construction
Frame: 1.5" X 3.0" steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Sealed ball bearings
Front Caster Fork: Fabricated 3/8" steel
General
Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 13 x 6.5
Drive Tire (Inches): 22 x 11-10 BigBite™
Weight (Lbs): 678
Height (Inches): 43.7
Length (Inches): 71.1
Width W/ Chute Up (Inches): 57
Tire-To-Tire Width (Inches): 48.6
Productivity (Acres Per Hour): 3.49
Warranty
Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
Dimensions with Catcher
Catcher Style: 2-bag
Powered / Non-Powered: Powered
Catcher Capacity: 7.2 bushel
Mower Length W/ Catcher: 92.3
Mower Width W/ Catcher: 63.2
Info
Industry
Power Equipment / Lawn
Make
Hustler
Model
Raptor XDX
Trim
Kawasaki FR691 / 54"
Year
2024
Category
Residential Lawn Mowers
Subcategory
Zero-Turn Mower
Condition
New
Specifications
Transmission
Hydro-Gear ZT-3100
Power
23 HP
Engine Displacement
726cc
Warranty
Residential: 3 Year/300 hour | Commercial: 3 Year/300 hour | Engine: 3 Year Warranty
Engine Type
Kawasaki FR691
Fuel Capacity
3 gal
Tires
Front: 13 x 6.5 | Drive: 22 x 11-10 BigBite
Weight
678
Height
43.7
Length
71.1 | Mower W/ Catcher: 92.3
Width
Chute Up: 57 | Tire To Tire: 48.6 | Mower W/ Catcher: 63.2
Deck Size
54"
Cutting Width
54"
