2024 Hustler Raptor XL Kawasaki FR691 / 54"

Call or Click for Quote

(270) 684-1741

Payments From

$0/mo

More Info

Apply for financing

Get Quote

 Schedule a Test Drive Value your Trade Ask Us Anything

Get in Touch

    Description

    2024 Hustler Raptor XL Kawasaki FR691 / 54"

    Raptor XL

    The Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.

    Features May Include:

    • Welded Steel Deck
      Welded fabricated steel deck helps add durability and can extend the mower's life.

    • Wider Stance
      Designed to provide ample room adding to the comfort for the operator.

    • SmoothTrak™ Steering
      Precision control designed to help trim and maneuver easily around obstacles.

    • Bolstered Seat
      Helps provide a comfortable ride with armrests and airflow to the back.

    • Rubber Floor Mat
      Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.

    • Fabricated Frame
      Continuous one-piece 1½ inch by 3 inch welded tubular frame.

    • Foot-Operated Deck Lift
      Easily adjust the deck height between 1.5" - 4.5".

    • Easy to Service
      Flip-up seat pan, removable floor pan, vented pulley covers.

    • Exclusive BigBite™ Rear Tires
      We worked directly with the tire manufacturer on this design.

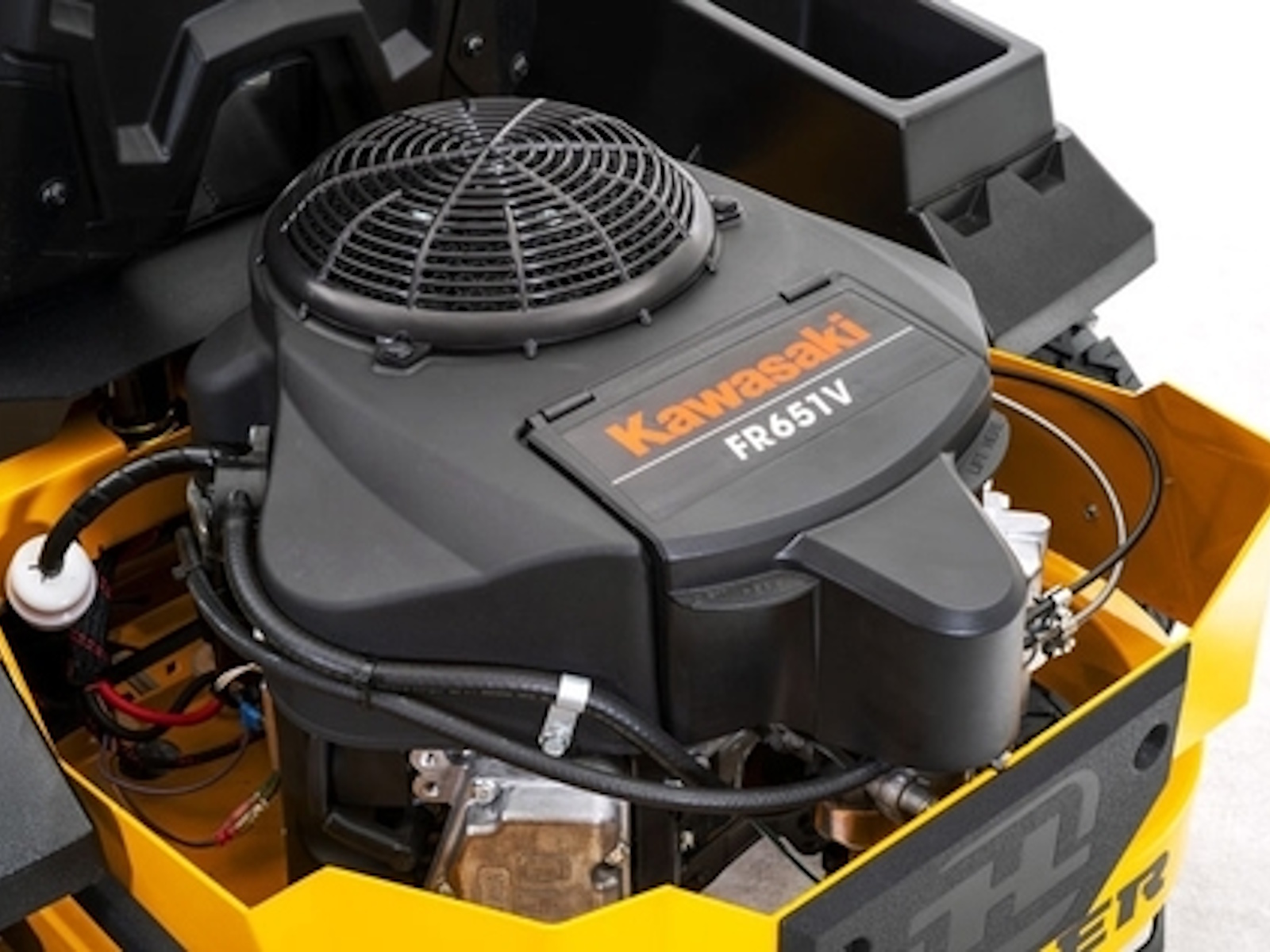

    • Kawasaki® Power
      Powered by a V-Twin Kawasaki® Engine.

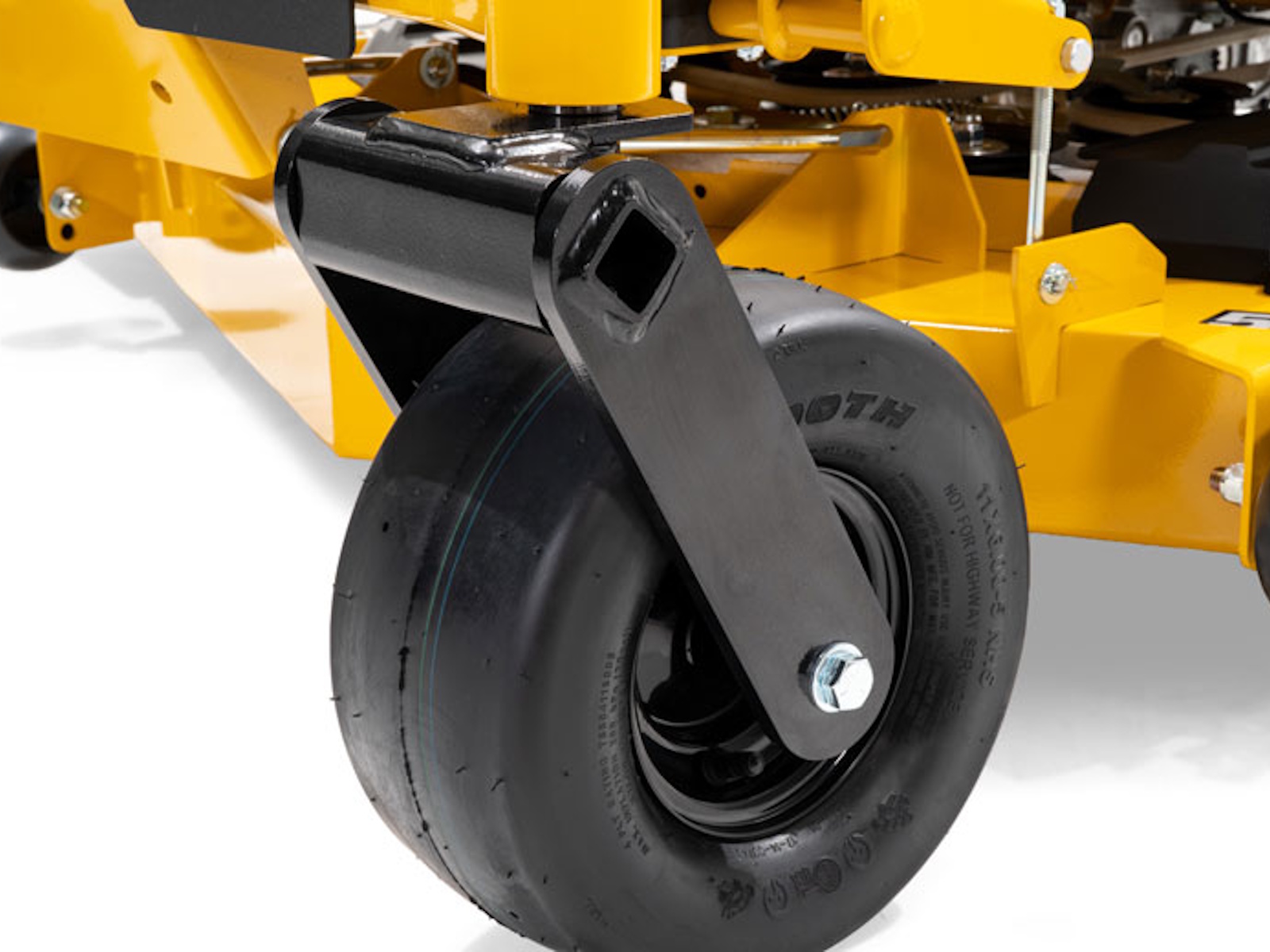

    • FlexForks®
      Standard on the XL, these flexing front forks help cushion the ride for a smoother mowing experience.

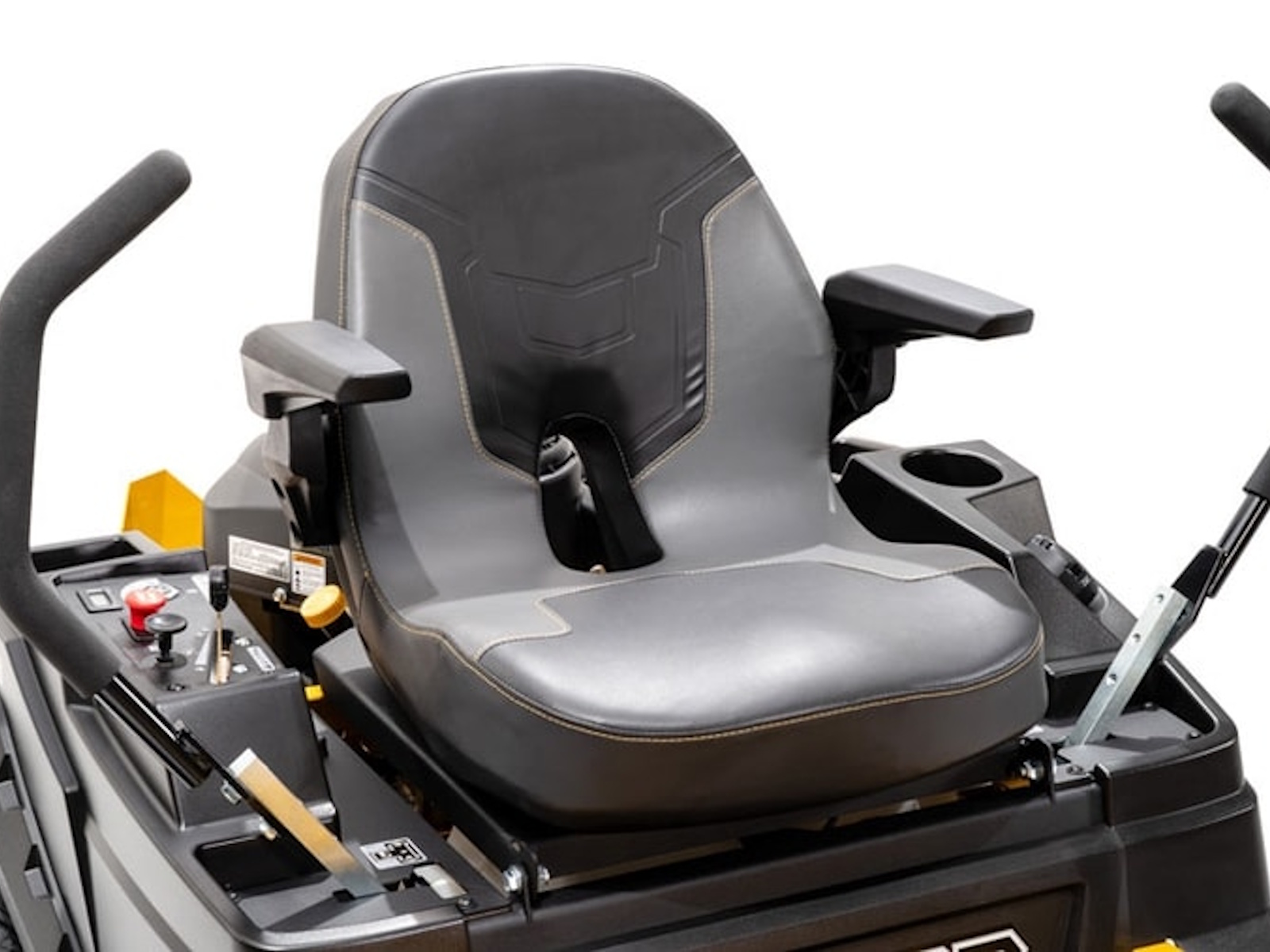

    • Bolstered Seat
      Compared to Raptor X seat, the XL seat features a higher back and added padding with the same armrests and air flow to the back.

    • Kawasaki® Engine
      Powered by a V-Twin Kawasaki Engine.

    Dealer Notes

    Features

    Kawasaki® Engine: Powered By A V-Twin Kawasaki Engine.

    Bolstered Seat: Compared To Raptor X Seat, The Xl Seat Features A Higher Back And Added Padding With The Same Armrests And Air Flow To The Back.

    Flexforks®: Standard On The Xl, These Flexing Front Forks Help Cushion The Ride For A Smoother Mowing Experience.

    Key Specs

    Engine Manufacturer: Kawasaki FR691

    Engine Horsepower: 23

    Transmission: Hydro-Gear ZT-2200

    Fuel Capacity: 3 gal.

    Ground Speed (Fwd): Up to 7 mph

    Cutting Width: 54"

    Cutting Height: 1.5" to 4.5"

    Front Tire: 11 X 6

    Drive Tire: 18 X 10.5-8 BigBite™

    Warranty: 3 Year/300 hour residential

    Engine

    Engine Manufacturer: Kawasaki FR691

    Engine Horsepower: 23

    Displacement: 726cc

    Cooling: Air Cooled

    Engine Warranty: 3 Year Warranty

    Drive System

    Type: Dual Hydrostatic

    Transmission: Hydro-Gear ZT-2200

    Fuel Capacity: 3 gal.

    Ground Speed (Fwd): Up to 7 mph

    Parking Brake: Integrated with steering levers

    Deck

    Cutting Width: 54"

    Cutting Height: 1.5" to 4.5"

    Deck Depth: 4.5"

    Deck Lift: Foot Operated

    Number Of Blades: 3

    Blade Length: 18.50'

    Blade Tip Speed: 18,800

    Spindles: Aluminum with 1" shaft and double lip sealed ball bearings

    Deck Engagement: Ogura GT1.5

    Deck Material: Fabricated 11 gauge steel

    Spindle Mounts: Reinforced 7 gauge steel

    Impact Trim Area: 1/4" x 1" steel bar

    Construction

    Frame: 1.5" X 3" steel tubing

    Front Axle: Fabricated with sealed ball bearings

    Front Caster Wheel: Sealed ball bearings

    Front Caster Fork: FlexFork®

    General

    Seat: Bolstered high-back seat with armrests and built-in lumbar support

    Cup Holder: Yes

    Dimensions

    Front Tire (Inches): 11 X 6

    Drive Tire (Inches): 18 X 10.5-8 BigBite™

    Weight (Lbs): 594

    Height (Inches): 42.6

    Length (Inches): 71.7

    Width W/ Chute Up (Inches: 58.6

    Tire-To-Tire Width (Inches): 46.5

    Productivity (Acres Per Hour): 3.05

    Warranty

    Warranty: 3 Year/300 hour residential

    Dimensions with Catcher

    Catcher Style: 2-bag

    Powered / Non-Powered: Non-powered

    Catcher Capacity: 5.4 bushel

    Mower Length W/ Catcher: 91.4

    Mower Width W/ Catcher: 69.5

    Info

    Industry

    Power Equipment / Lawn

    Make

    Hustler

    Model

    Raptor XL

    Trim

    Kawasaki FR691 / 54"

    Year

    2024

    Category

    Residential Lawn Mowers

    Subcategory

    Zero-Turn Mower

    Condition

    New

    Specifications

    Engine Type

    Kawasaki FR691

    Deck Size

    54"

    Power

    23 HP

    Engine Displacement

    726cc

    Warranty

    3 Year/300 hour residential | Engine: 3 Year Warranty

    Transmission

    Hydro-Gear ZT-2200

    Fuel Capacity

    3 gal

    Tires

    Front: 11 X 6 | Drive: 18 X 10.5-8 BigBite

    Weight

    594

    Height

    42.6

    Length

    71.7 | Mower W/ Catcher: 91.4

    Width

    Chute Up: 58.6 | Tire To Tire: 46.5 | Mower W/ Catcher: 69.5

    Cutting Width

    54"
