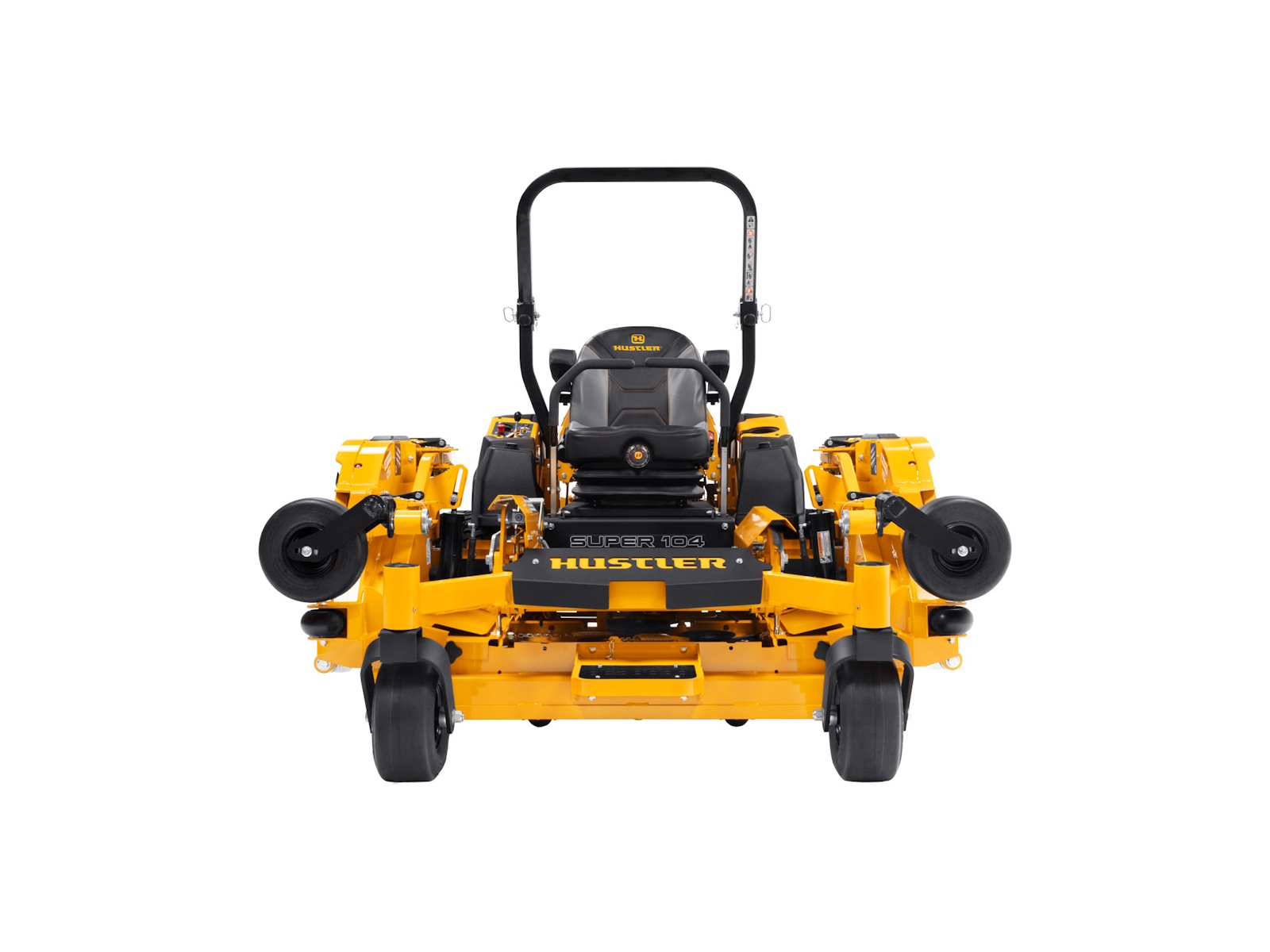

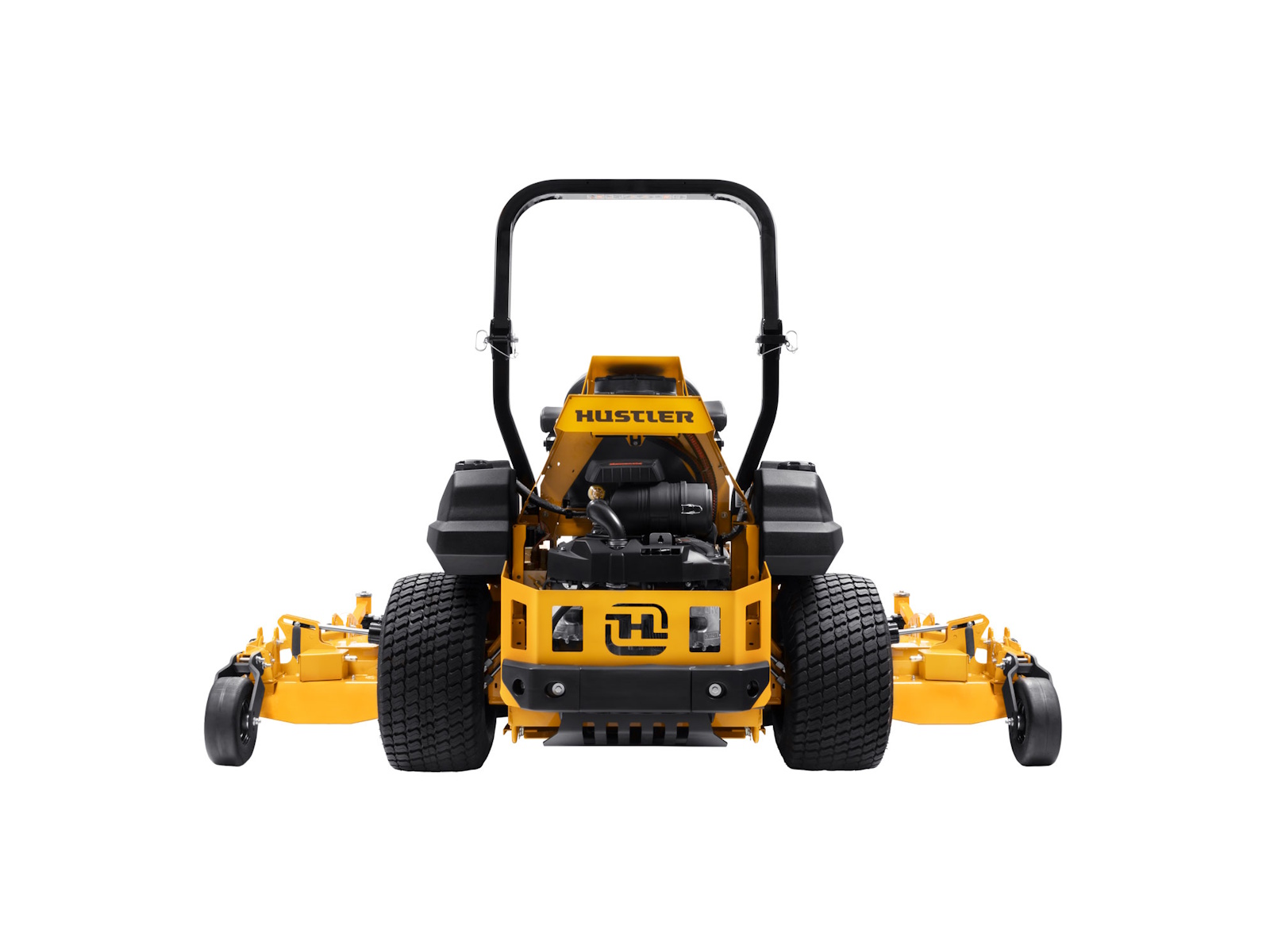

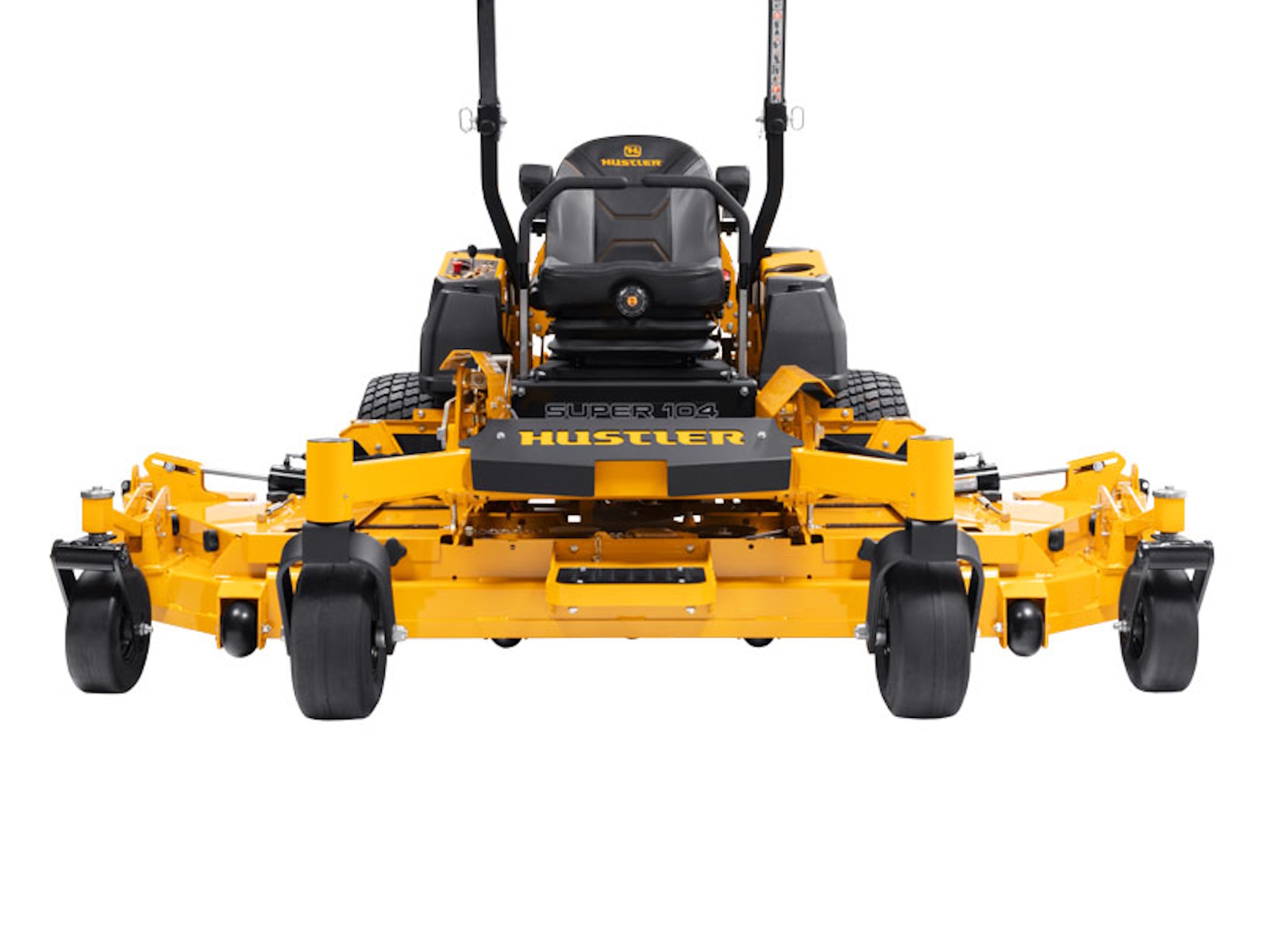

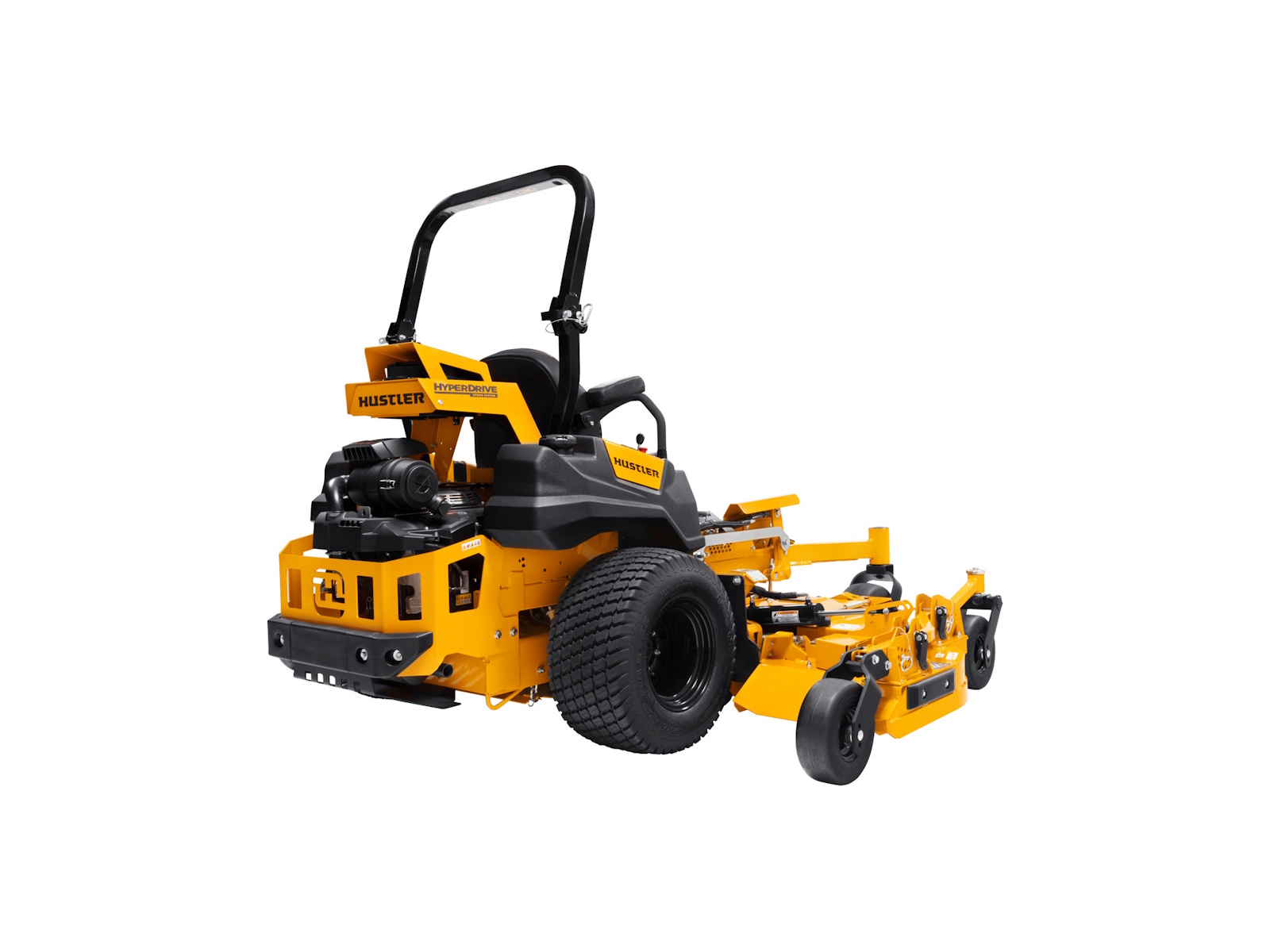

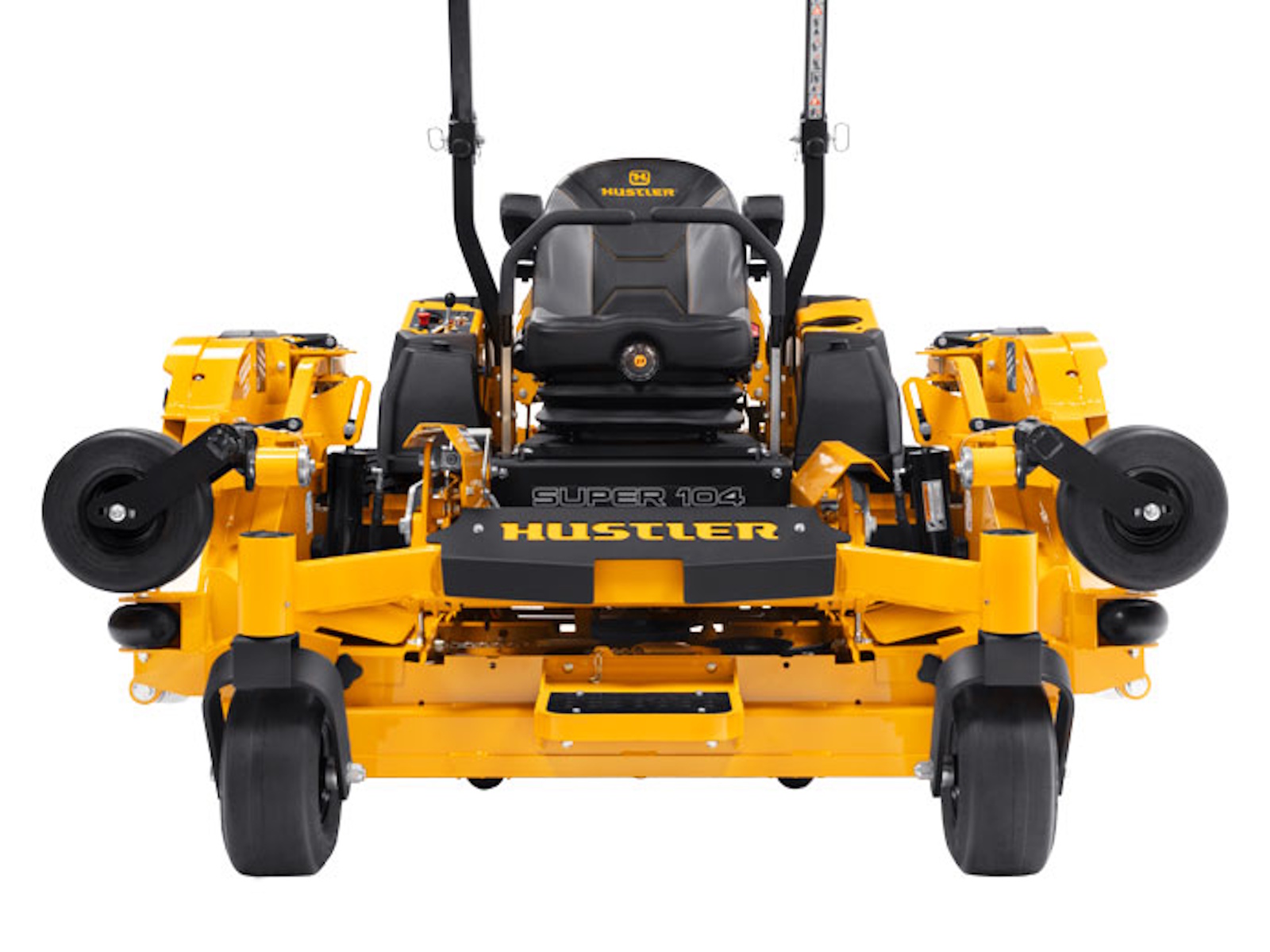

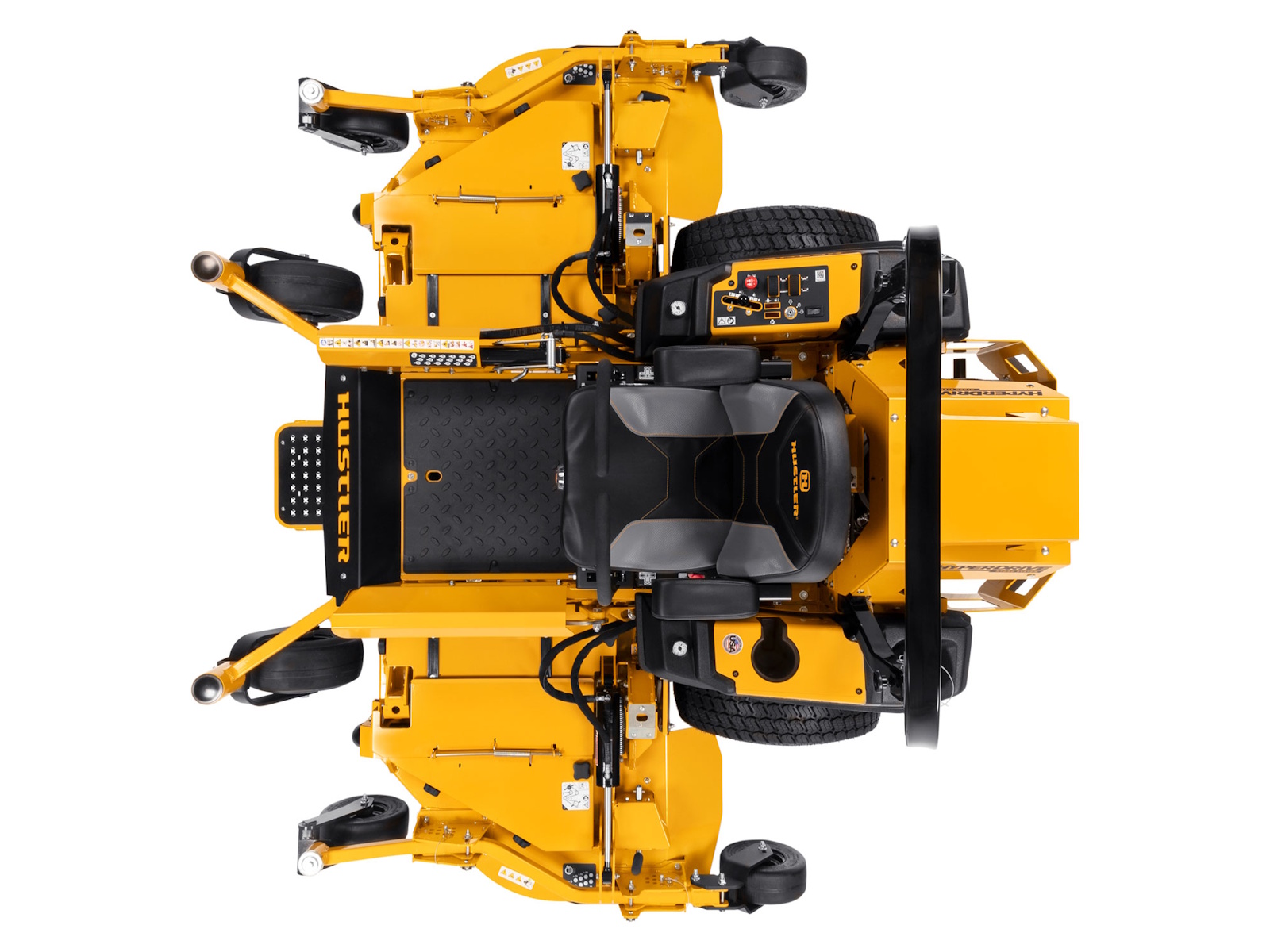

2024 Hustler Super 104 Kawasaki FX1000 EFI
Get in Touch
Description
2024 Hustler Super 104 Kawasaki FX1000 EFI
104 Inch Width Of Cut Makes Big Jobs Easy.
Hustler's Super 104™ can easily handle acres of work. Offering a 104" width of cut, zero-turn precision and up to an impressive 11 mph speed, this machine is in a class by itself.
Features May Include:
- Wings Fold To 80"
80" transport width fits most trailers helping to make it easy to transport from job-to-job. - 104" Width of Cut
Widest and most productive commercial zero-turn available from Hustler Turf. - HyperDrive Hydro System

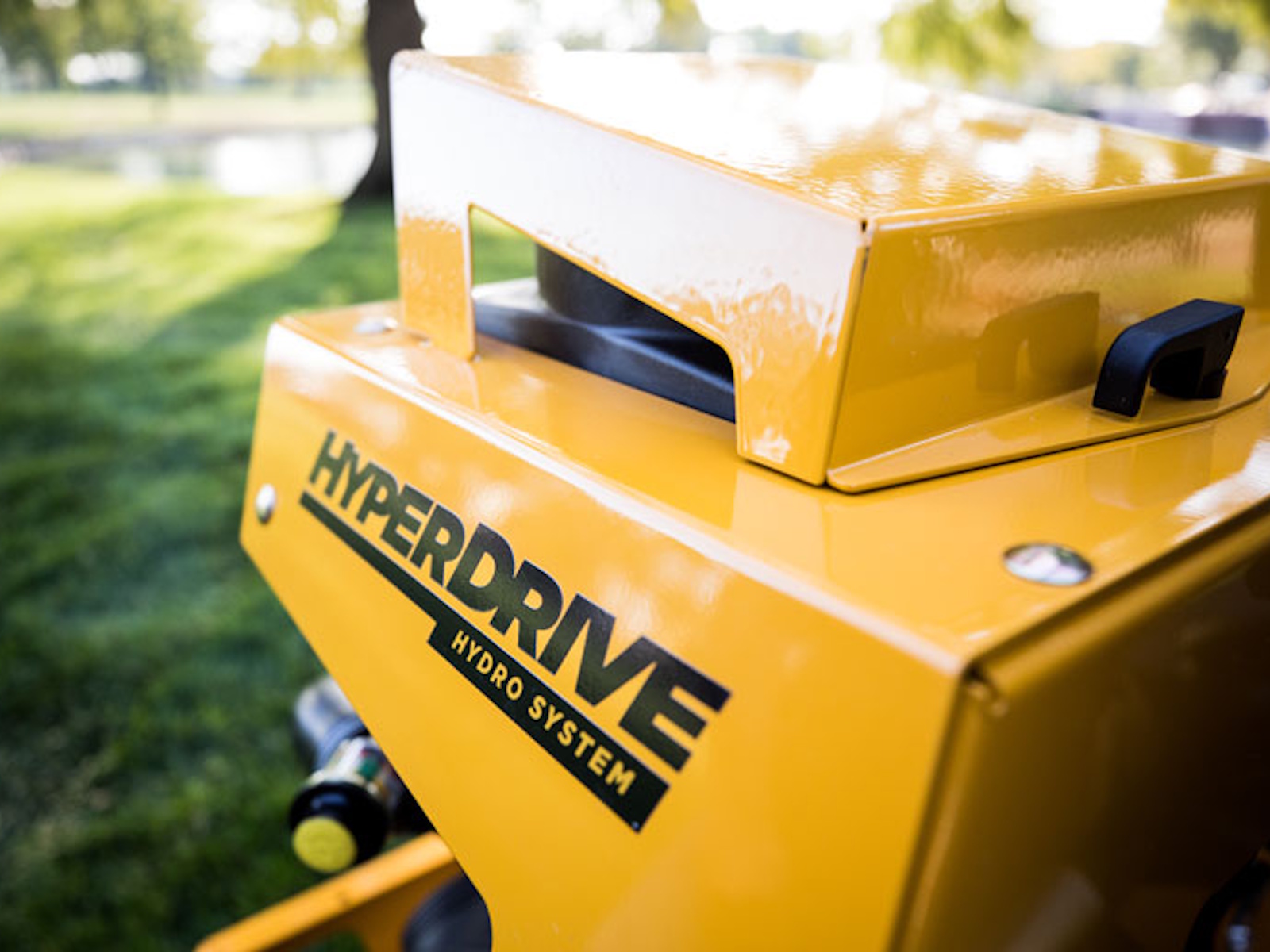

A Hustler® exclusive, industrial-grade pumps and high torque wheel motors, 3-gallon reservoir, oil cooler and hot oil shuttle.
Dealer Notes
Features
I3M™ Seat: High-Back Seat With Adjustable Armrests And 3-Inch Suspension Travel Range.
Hyperdrive Hydro System: A Hustler® Exclusive, Industrial-Grade Pumps And High Torque Wheel Motors, 3-Gallon Reservoir, Oil Cooler And Hot Oil Shuttle.
104" Width Of Cut: Widest And Most Productive Commercial Zero-Turn Available From Hustler Turf.
Wings Fold To 80": 80" Transport Width Fits Most Trailers Helping To Make It Easy To Transport From Job-To-Job.
Key Specs
Engine Manufacturer: Vanguard Big Block EFI Oil Guard, Kawasaki FX1000 EFI
Engine Horsepower: 40, 38.5
Transmission: Danfoss DDC20 pumps with Parker TG wheel motors
Fuel Capacity: 15 gal.
Ground Speed (Fwd): Up to 11 mph
Cutting Width: 104"
Cutting Height: 1" to 5.5"
Front Tire: 15 x 6-6
Drive Tire: 26 × 12-121
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Engine
Engine Manufacturer: Kawasaki FX1000 EFI
Engine Horsepower: 38.5
Displacement: 999cc (Kawasaki)
Cooling: Air cooled
Air Cleaner: Remote Canister
Engine Warranty: 3 Year Limited
Drive System
Type: Dual Hydrostatic
Transmission: Danfoss DDC20 pumps with Parker TG wheel motors
Hydraulic Lines: Stainless Parker Seal-Loc Technology
Reservoir Capacity: 3 gallons
Hydraulic Cooling: Oil Cooler w/9" fan
Fuel Capacity: 15 gal.
Ground Speed (Fwd): Up to 11 mph
Parking Brake: Integrated with steering levers
Deck
Cutting Width: 104"
Cutting Height: 1" to 5.5°
Deck Depth: 5.5"
Deck Lift: Hydraulic powered
Number Of Blades: 5
Blade Length: 23.86" - 20.5"
Blade Tip Speed: Wing Decks: 15,800; Center Deck: 15,500
Spindles: Ductile cast iron with steel shaft and sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: 11 gauge welded steel
Spindle Mounts: Reinforced 7 ga doubler
Impact Trim Area: 1.5" x.375" steel bar
Construction
Frame: 1.5" X 3" steel tubing
Front Axle: Fabricated with tapered roller bearings
Front Caster Wheel: Tapered wheel bearings and debris cap
Front Caster Fork: Fabricated 1/2" steel
Dimensions
Front Tire (Inches): 15 × 6-6
Drive Tire (Inches): 26 × 12-12
Wing Tire (Inches): 11 x 4 Semi-Pneumatic
Weight (Lbs): 2500
Height (Inches): 54" (71.5" w/ ROPS)
Length (Inches): 95.5°
Width W/ Chute Up (Inches): 106.1 wings down, 80" wing up at gauge wheel, 72.5" deck base
Tire-To-Tire Width (Inches): 60.3
Productivity (Acres Per Hour): 9.24
General
Seat: I3M Suspension Seat (adjustable armrests & back)
Cup Holder: Yes
Warranty
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Info
Industry
Power Equipment / Lawn
Make
Hustler
Model
Super 104
Trim
Kawasaki FX1000 EFI
Year
2024
Category
Commercial Lawn Mowers
Subcategory
Riding
Condition
New
Specifications
Engine Type
Kawasaki FX1000 EFI
Power
38.5
Engine Displacement
999cc
Warranty
5 Year / 1200 Hour | Engine: 3 Year Limited
Transmission
Danfoss DDC20 pumps with Parker TG wheel motors
Fuel Capacity
15 gal
Tires
Front: 15 x 6-6 | Drive: 26 x 12-12 | Wing: 11 x 4 Semi-Pneumatic
Weight
2500
Height
54" | ROPS Up: 71.5"
Length
95.5"
Width
Wings Down: 106.1 | Wing Up: 80" | Deck: 72.5" | Tire To Tire: 60.3
Deck Size
104”
