2024 Hustler Super SF Vanguard Big Block EFI w/Oil Guard (40hp) 72"
Get in Touch
Description
2025 Hustler Super SF Vanguard Big Block EFI w/Oil Guard (40hp) 72"

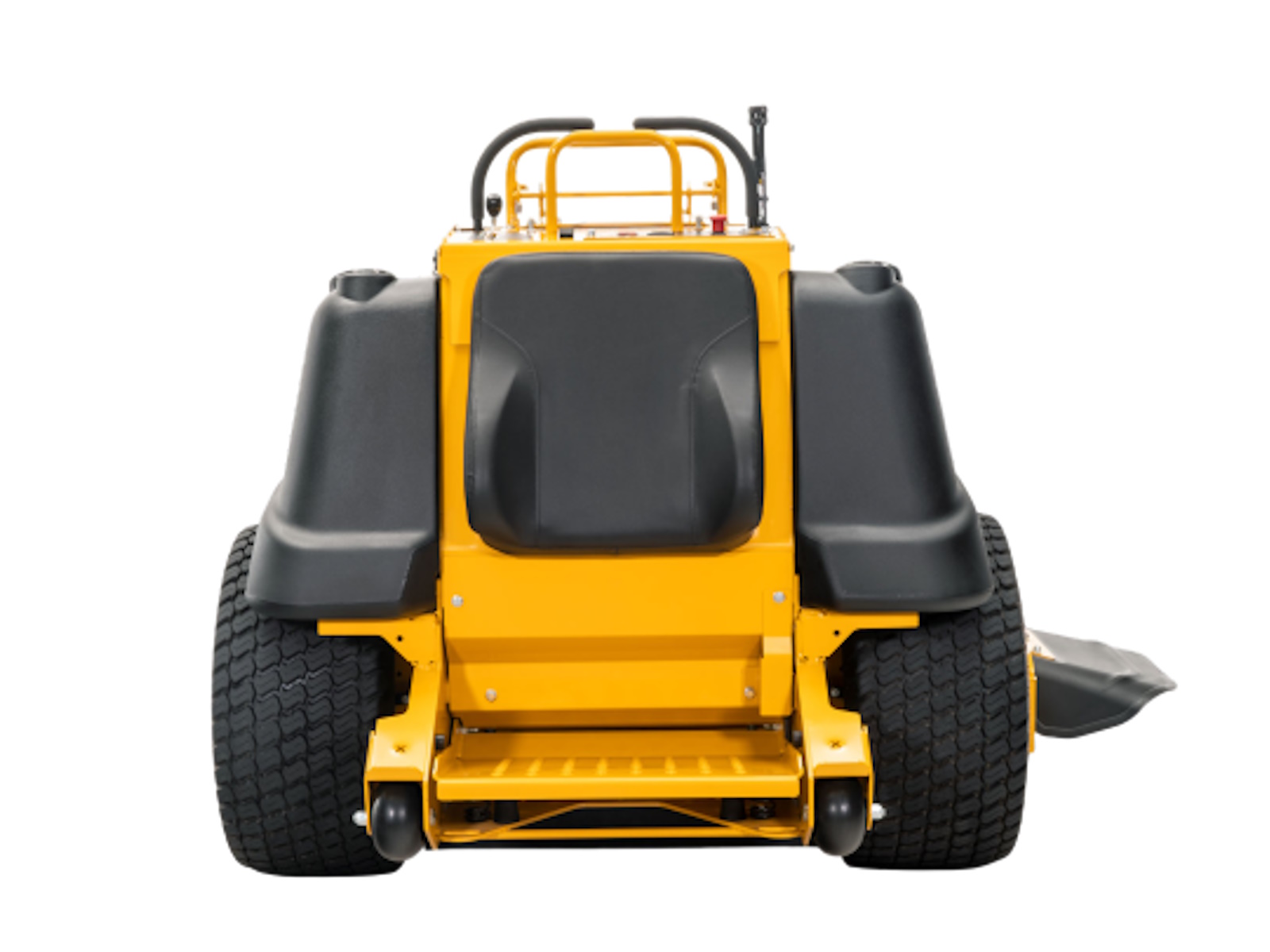

The Hustler Turf Super SF is the newest and biggest addition to our popular stand-on family of mowers. This monster mower is for the busy commercial contractor who needs to mow large properties with speed and precision. The Super SF comes equipped with dual fuel tanks, our newest fabricated VX deck, and at 26 inches, we've got the biggest tires in the stand-on game. With a heavy-duty hydraulic system including 21cc pumps and Parker wheel motors, the Super SF can reach speeds up to 15 mph.
Features May Include:

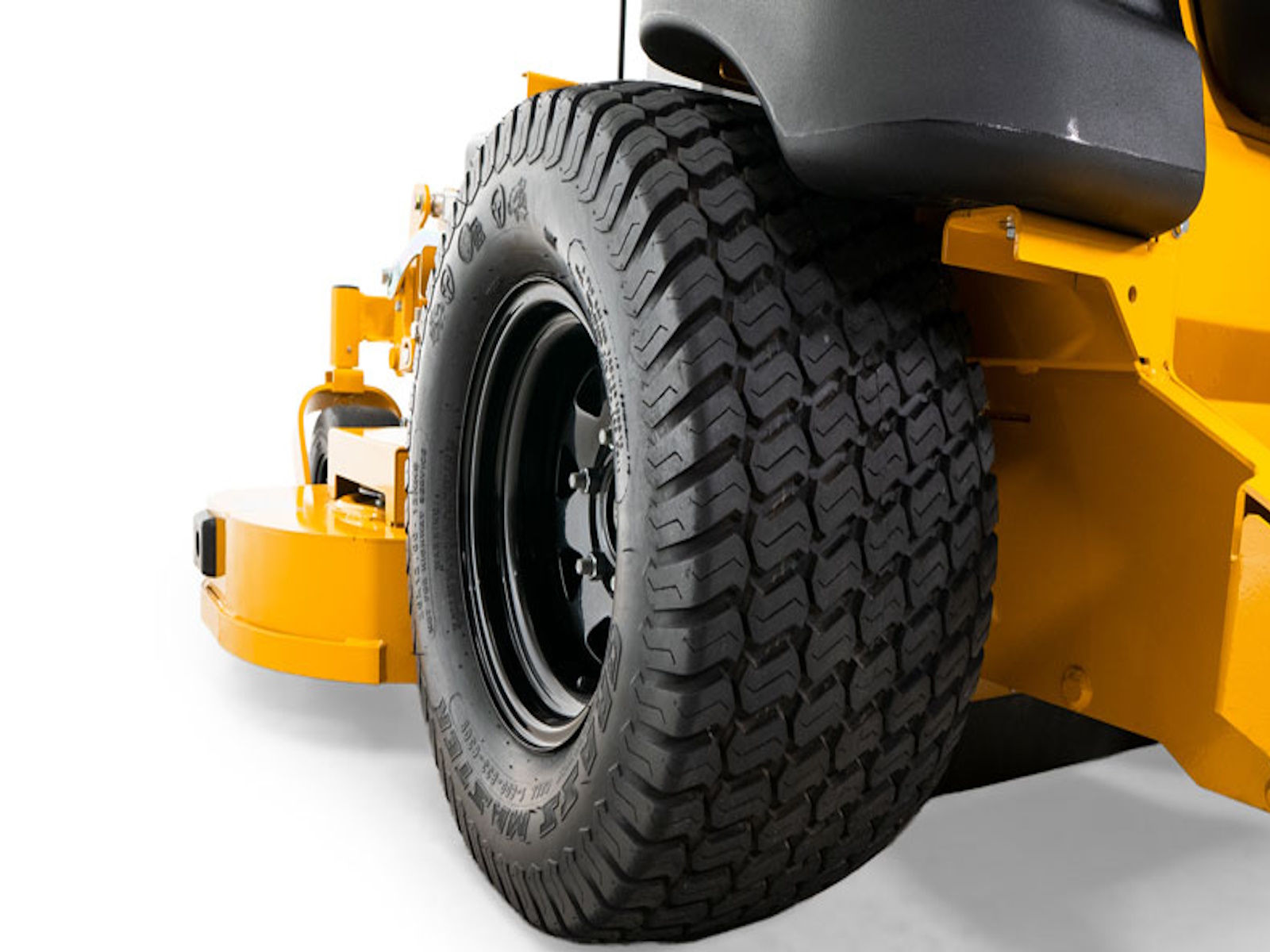

- Large Rear Tires
26” x 12" rear tires help with stability and traction.

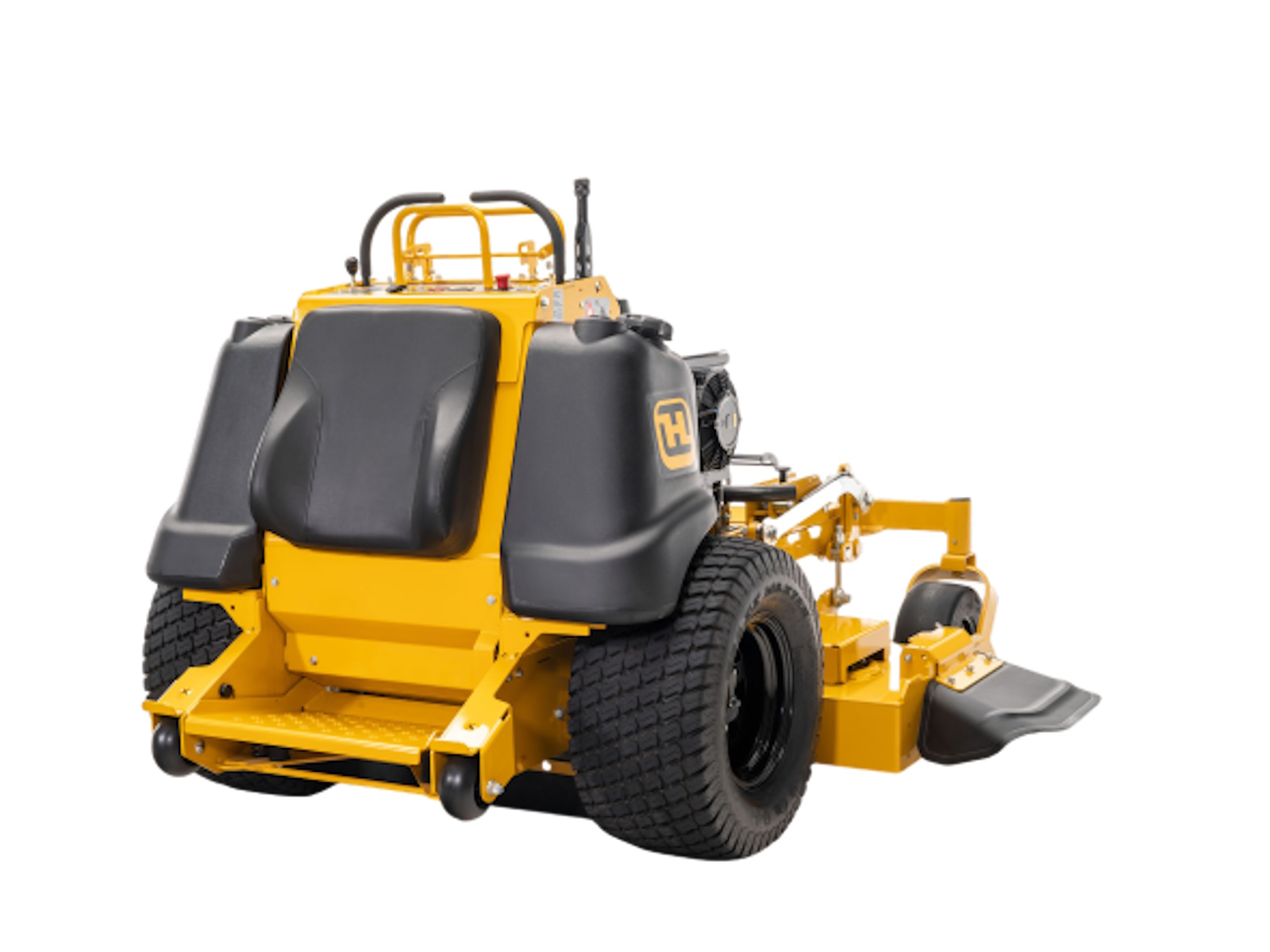

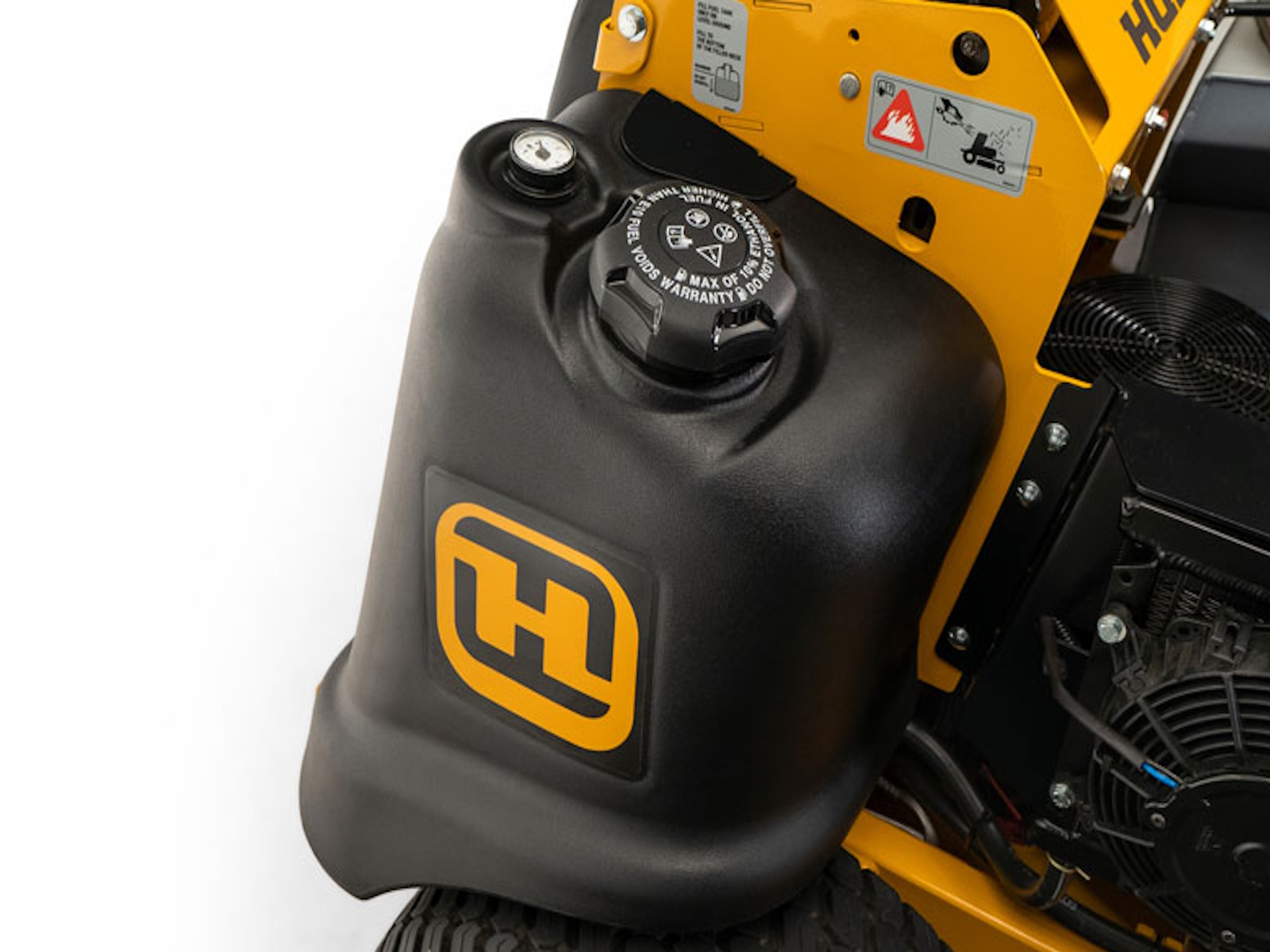

- Dual Fuel Tanks
Dual fuel tanks with 13.9 gallon total fuel capacity.

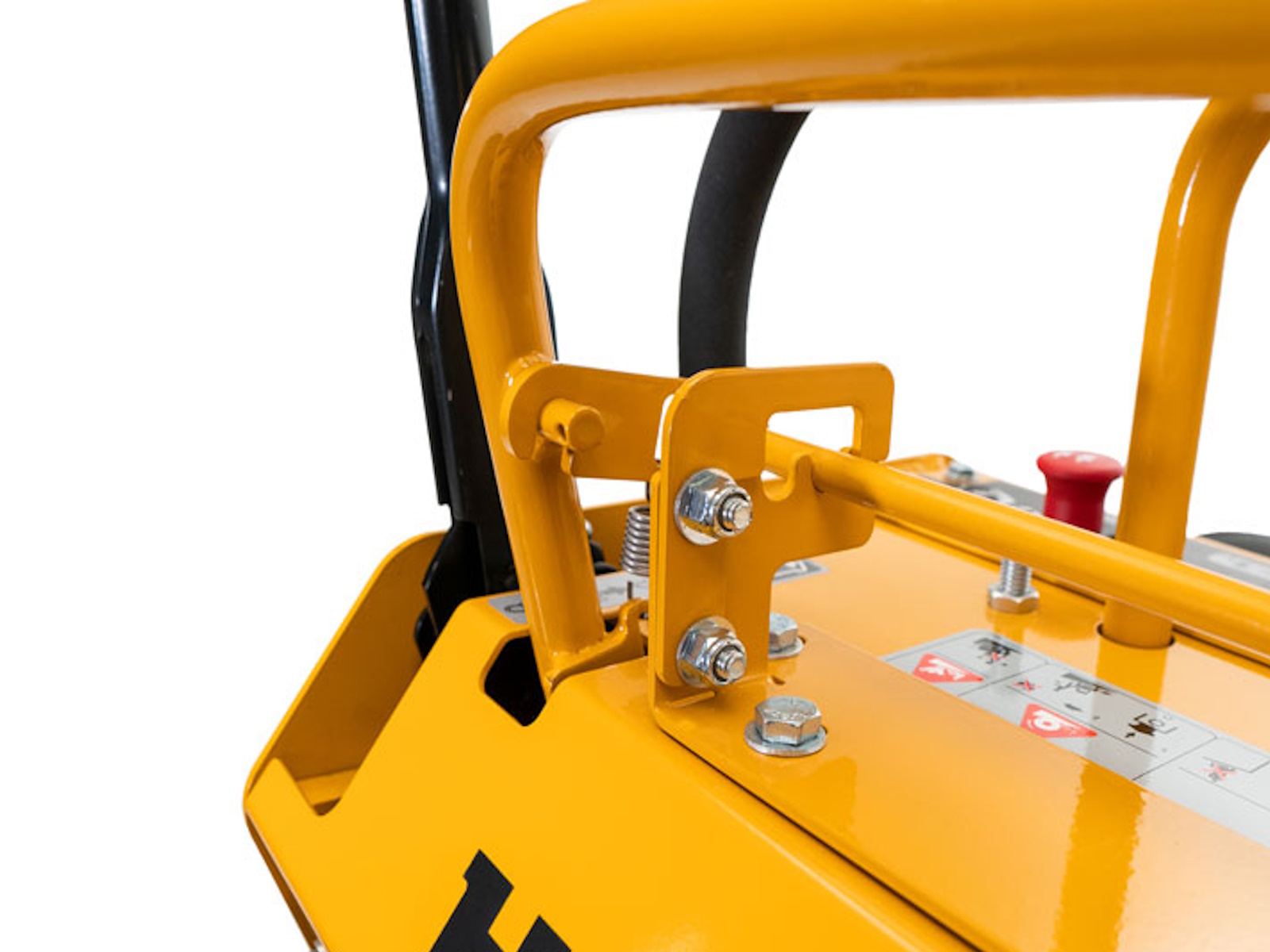

- Speed Control Bar Adjustment
Up to 15 mph with reduced speed up to 10 mph.
- Strong Hydraulics
Hydro-Gear 21 cc pumps and Parker TG wheel motors.

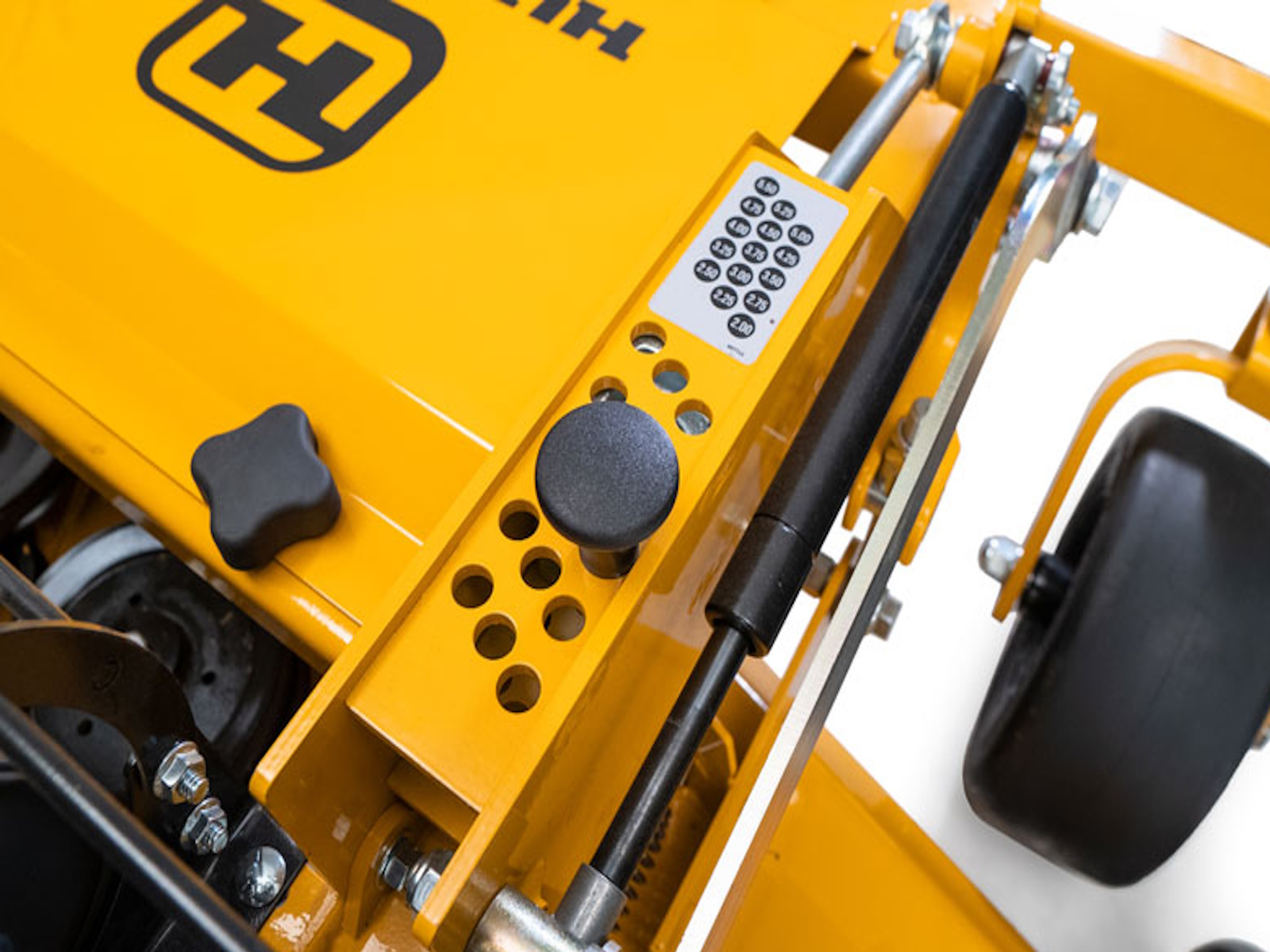

- Electric Actuator Deck Lift
Easily adjust cutting height from 2.0” to 5.5”.
Dealer Notes
Key Specs
Engine Manufacturer: Kawasaki FX1000 EFI, Vanguard Big Block EFI Oil Guard
Engine Horsepower: 38.5, 40
Transmission: Hydro-Gear 21cc pumps with Parker TG wheel motors
Fuel Capacity: 13.9 gal.
Ground Speed (Fwd): Up to 15 mph (Using speed limiter: Up to 10 mph)
Cutting Width: 72"
Cutting Height: 2.0" to 5.5"
Front Tire: 13 x 6.5 - 6 semi-pneumatic
Drive Tire: 26 × 12-12
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Engine
Engine Manufacturer: Kawasaki FX1000 EFI, Vanguard Big Block EFI Oil Guard
Engine Horsepower: 38.5. 40
Displacement: FX1000 EFI: 999cc, Vanguard: 993cc
Cooling: Air Cooled
Air Cleaner: Remote Canister
Engine Warranty: 3 Year Limited
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear 21cc pumps with Parker TG wheel motors
Hydraulic Lines: n/a
Reservoir Capacity: 6 quarts
Hydraulic Cooling: Oil Cooler w/ 8" fan
Fuel Capacity: 13.9 gal.
Ground Speed (Fwd): Up to 15 mph (Using speed limiter: Up to 10 mph)
Parking Brake: Hand operated drum brakes
Deck
Cutting Width: 72"
Cutting Height: 2.0" to 5.5°
Deck Depth: 5.5"
Deck Lift: Electric actuator
Number Of Blades: 3
Blade Length: 24.50'
Blade Tip Speed: 18,500
Spindles: Ductile cast iron with steel shafts and sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: 7 gauge w/ 7 gauge wrappers
Spindle Mounts: Reinforced 7 gauge stamped disc
Impact Trim Area: 11 ga. formed channel w/ rolled edge
Construction
Frame: 1.5" X 3" steel tubing
Engine Plate: 7 gauge
Operator Platform: 7 gauge
Front Axle: Fabricated w/ tapered roller bearings
Front Caster Wheel: Tapered wheel bearings and debris cap
Front Caster Fork: Fabricated 1/2" steel
Dimensions
Front Tire (Inches): 13 x 6.5 - 6 semi-pneumatic
Drive Tire (Inches): 26 x 12-12
Wing Tire (Inches):
Weight (Lbs): 1500
Height (Inches): 50
Length (Inches): 81.7
Width W/ Chute Up (Inches): 73.6
Tire-To-Tire Width (Inches): 53.5
Productivity (Acres Per Hour): 8.73
Warranty
Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)
Info
Industry
Power Equipment / Lawn
Make
Hustler
Model
Super SF
Trim
Vanguard Big Block EFI w/Oil Guard (40hp) 72"
Year
2024
Category
Commercial Lawn Mowers
Subcategory
Stand-On
Condition
New
Specifications
Engine Type
Vanguard Big Block EFI w/Oil Guard
Engine
40 HP
Cutting Width
72"
Transmission
Hydro-Gear 21cc pumps with Parker TG wheel motors
Fuel Capacity
13.9 gal.
Height
2.0" to 5.5"
Tires
Front: 13 x 6.5 - 6 semi-pneumatic
Warranty
5 Year / 1200 Hour (First 2 Years No Hour Limit)
