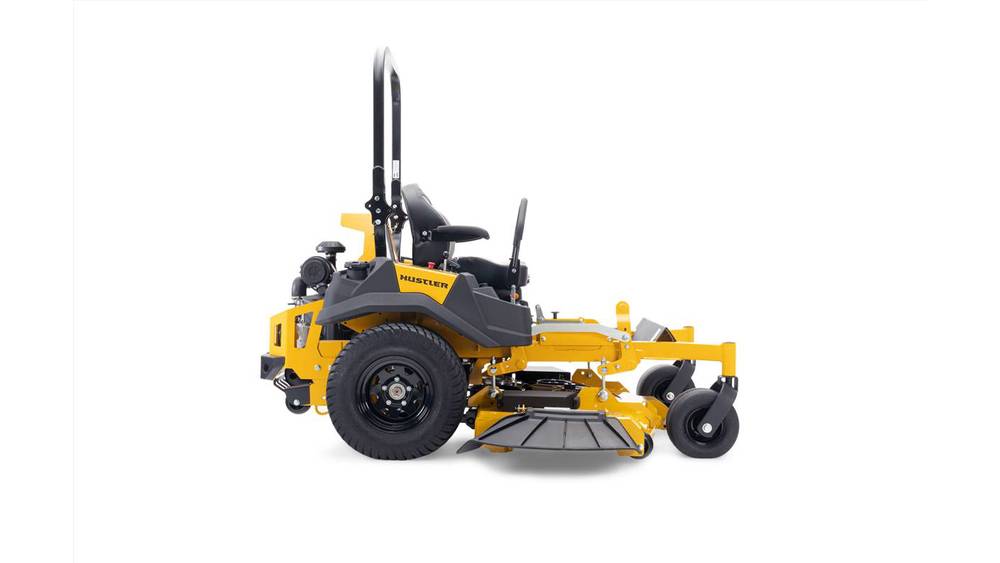

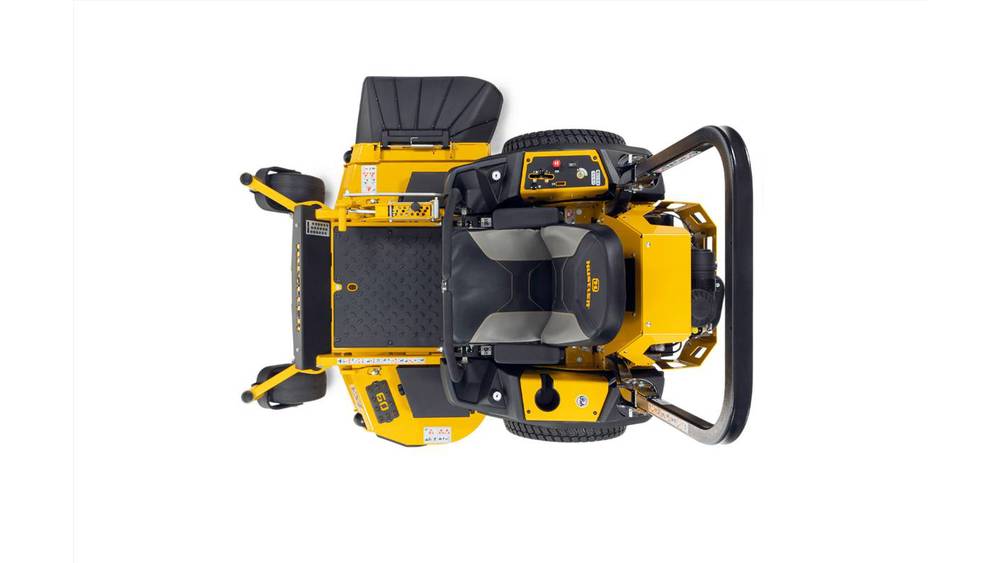

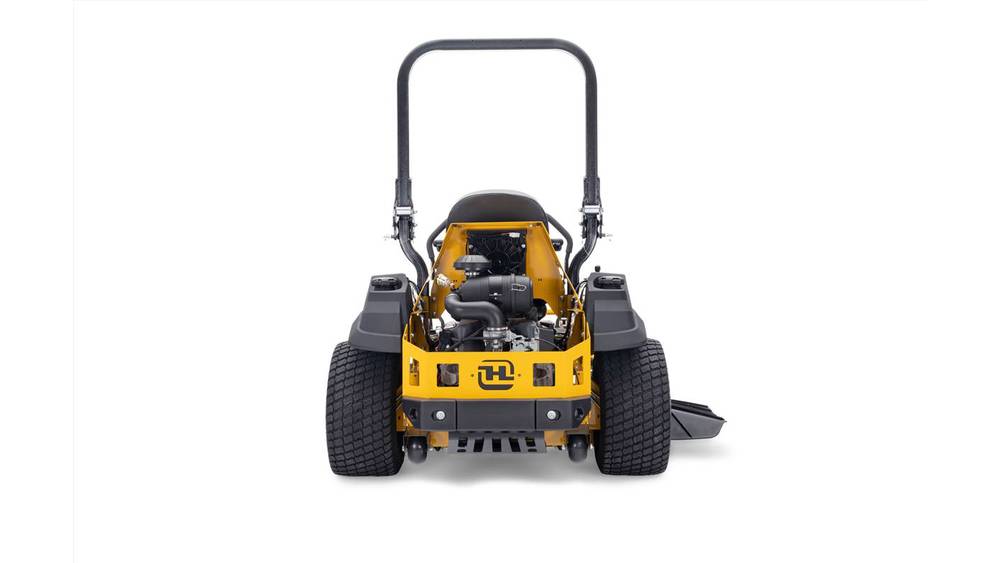

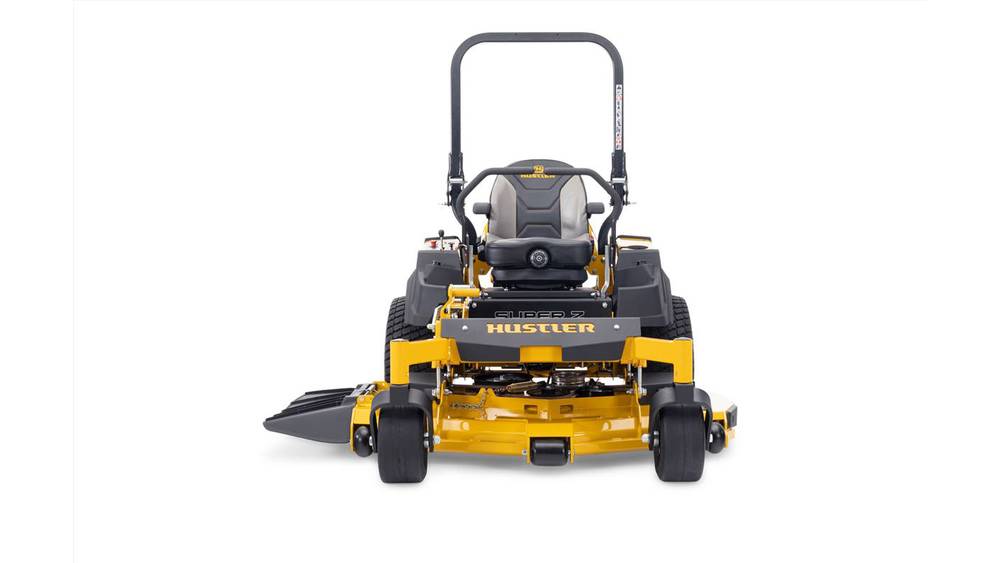

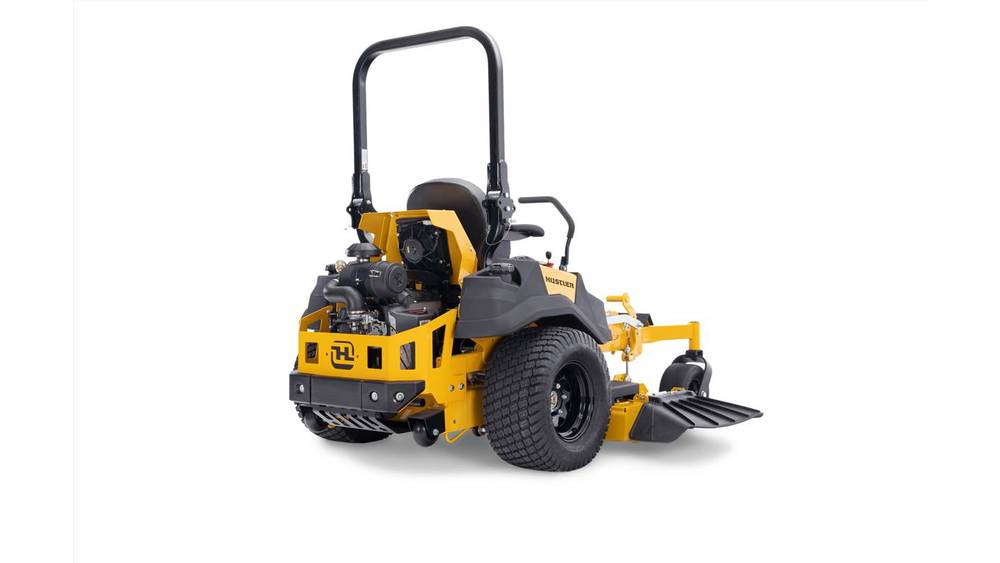

2024 Hustler Super Z 60" Vanguard BigBlock™ EFI with Oil Guard

Features Hustler's VX4 Deck, Heavy-Duty Hydraulics.

The Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass more quickly and efficiently regardless of conditions.

Features

Foot Operated Deck Lift: Easily adjust your cutting height between 1"- 5.5" with your foot.

I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.

SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles.

Large Fuel Capacity: Dual fuel tank w/ 12 gallon total fuel capacity.

Easy Serviceability: Flip-up seat pan, removable floor pan, and vented pulley covers for easy and simple maintenance.

Heavy-Duty Hydraulics: Heavy-duty hydraulics with 3 gal. oil reservoir, oil cooler w/ fan & hot oil shuttle.

I3M™ Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.

Offers & Programs Available: Hustler Military Discount

All active members and veterans of each branch of the U.S. Armed Services are eligible for a discount off of current promotional prices of any new or unused Hustler mowers, pressure washers or generators.: Fleet Program

The Hustler fleet program is the most aggressive in the industry. No one honors loyalty like Hustler and to qualify, you only need to purchase 2 units. Once you’re in the program, your fleet pricing is good for a rolling 12 months. If you need to add a single unit 6 months from your original purchase, you get the fleet discount for that 1 unit and your 12 months starts over.:

Accessories

Aluminum Side Bagger: Easy-on, easy-off bagger with 3.3-bushel or 4.96-bushel capacity options.

Side Light Kit: Extend your productivity into the late hours with our optional light kit.

Fabric Side Bagger: Easy-on, easy-off bagger has a 3.5-bushel capacity.

Stripe Kit: Helps provide a professional manicured finish to your lawn.

Beacon Kit: Flashing beacon lights are sometimes required when mowing in high traffic or to make mowing crews more visible. Mounts on the ROPS.

Rear Hitch Kit: Rear hitch kit available for multiple user applications.

Dual Anti-Scalp Wheels: Additional kit for increased deck scalping protection. Fixed position. Can be used in conjunction with the single anti-scalp wheel kit.

Sand Kit: A deck kit that helps withstand the heavy use in sandy conditions.

Flasher Kit: Flasher kit for increased visibility and safety.

Front Light Kit: Extend your productivity into the late hours with our optional light kit.

Single Anti-Scalp Wheel: Additional kit for increased deck scalping protection. Two height settings. Can be used in conjunction with the dual anti-scalp kit.

Mulch Kit: Recycle clippings back into the soil and reclaim nutrients for your lawn.

Semi-Pneumatic Front Tires: Flat-free front tire option.

MICHELIN® X® TWEEL® TURF: The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. 60" and 72" X-ONE models, 60", 66" and 72" Super Z models only.

MICHELIN® X® TWEEL® TURF CASTER: The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.

BacVac Bagger: Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.

3-Bag Powered Bagger: Easy-on, easy-off blower and hopper assemblies. Holds 12 bushels.

Steering Lever Extension Kit: Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.

Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.

Key Specs

Engine Manufacturer: Vanguard BigBlock™ EFI with Oil Guard

Engine Horsepower: 40

Transmission: Hydro-Gear 21cc PY pumps with Parker TG wheel motors

Fuel Capacity: Dual Fuel Tank w/ 12 Gallon total capacity

Ground Speed (Fwd): Up to 14 mph

Cutting Width: 60"

Cutting Height: 1" to 5.5"

Front Tire: 13 x 6.5-6

Drive Tire: 26 x 12-12

Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

Engine

Engine Manufacturer: Vanguard BigBlock™ EFI with Oil Guard

Engine Horsepower: 40

Cooling: Air Cooled

Air Cleaner: Canister Style

Engine Warranty: 3 Year Limited

Drive System

Type: Dual Hydrostatic

Transmission: Hydro-Gear 21cc PY pumps with Parker TG wheel motors

Hydraulic Lines: Stainless steel Parker Seal-Loc Technology

Reservoir Capacity: 3 gallons

Hydraulic Cooling: Oil Cooler w/8" fan

Engine Warranty: 3 Year Limited

Fuel Capacity: Dual Fuel Tank w/ 12 Gallon total capacity

Ground Speed (Fwd): Up to 14 mph

Parking Brake: Integrated with steering levers

General

Seat: I3M Suspension Seat

Cup Holder: Yes

Dimensions

Front Tire (Inches): 13 x 6.5-6

Drive Tire (Inches): 26 x 12-12

Weight (Lbs): 1553-1637

Height (Inches): 47.8, 73.5 w/rops

Length (Inches): 88

Width W/ Chute up (Inches): 66

Tire-To-Tire Width (Inches): 58

Productivity (Acres Per Hour): 6.78

Warranty

5 Year / 1200 Hour (First 2 Years No Hour Limit)

Dimensions With Catcher

Catcher Style: 3-bag

Powered / Non-Powered: Powered

Catcher Capacity: 12 bushel

Mower Length W/ Catcher: 114.9"

Mower Width W/ Catcher: 70.9"

Style 2: Catcher Style: BAC-VAC

Style 2: Powered / Non-Powered: Powered

Style 2: Catcher Capacity: 10 bushel

Style 2: Mower Length W/ Catcher: 108.4"

Style 2: Mower Width W/ Catcher: 70.9"
