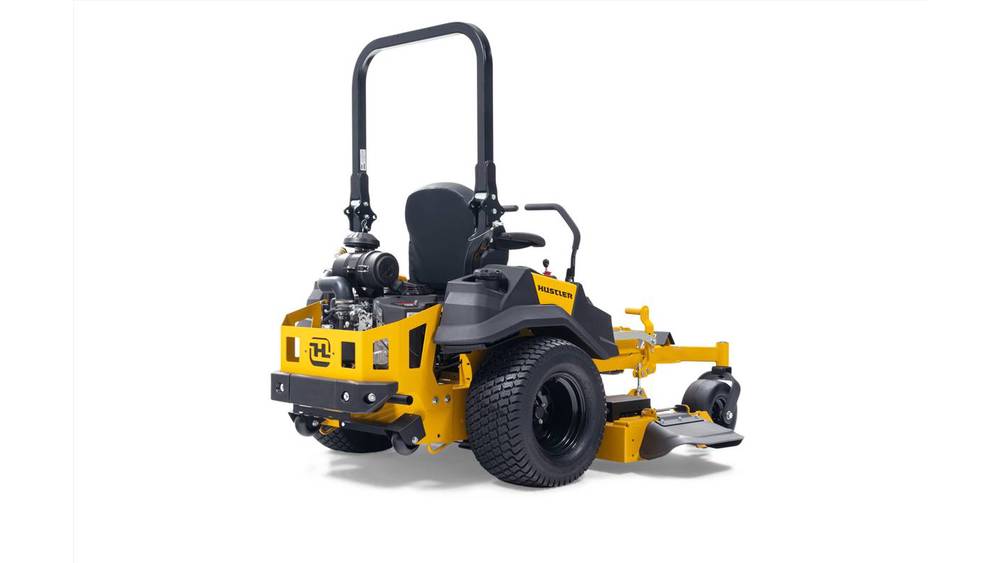

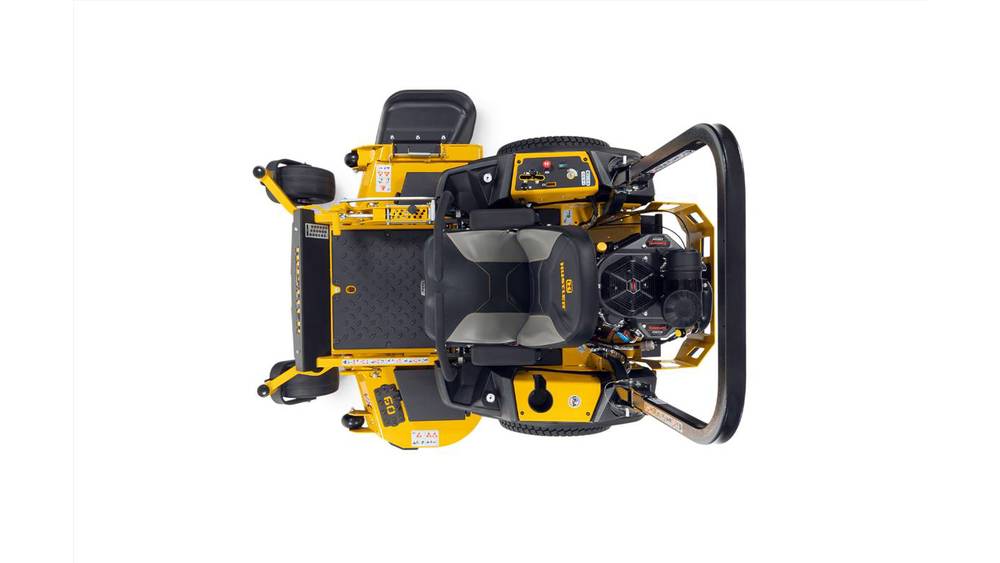

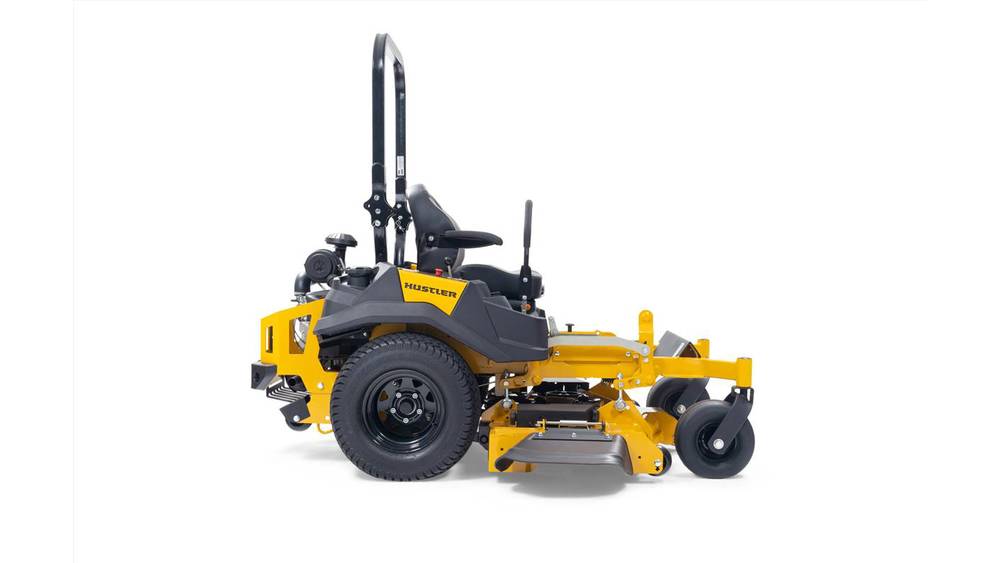

2024 Hustler X-ONE 60" Vanguard 810cc w/ Oil Guard

Built For All Day, Every Day Performance.

The X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.

Features

Fabricated Frame: 1.5" x 3.0" steel single piece fabricated frame.

SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles.

Foot Operated Deck Lift: Easily adjust the deck height between 1"- 5.5" with your foot.

VX Deck: Fabricated 7 ga. steel engineered for extreme vacuum for performance and cut quality.

Commercial-grade Torque: Hydro-Gear® ZT-4400™ transmissions.

I3M Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.

VX (TM) Deck: Engineered for extreme vaccum, the all new Hustler VX deck more efficiently draws the grass up into the mower blades providing a cleaner cut which in turn creates a superior after cut appearance.

I3M™ Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.

Commercial-Grade Engines: Kawasaki® FX, Kohler® Command Pro® and Vanguard® Engine options backed by 3 year limited warranties.

Accessories

Aluminum Side Bagger: Easy-on, easy-off bagger with 3.3-bushel or 4.96-bushel capacity options.

Side Light Kit: Extend your productivity into the late hours with our optional light kit.

Fabric Side Bagger: Easy-on, easy-off bagger has a 3.5-bushel capacity.

Rear Hitch Kit: Rear hitch kit available for multiple user applications.

Front Light Kit: Extend your productivity into the late hours with our optional light kit.

Single Anti-Scalp Wheel: Additional kit for increased deck scalping protection. Two height settings. Can be used in conjunction with the dual anti-scalp kit.

Mulch Kit: Recycle clippings back into the soil and reclaim nutrients for your lawn.

Semi-Pneumatic Front Tires: Flat-free front tire option.

MICHELIN® X® TWEEL® TURF: The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. 60" and 72" X-ONE models, 60", 66" and 72" Super Z models only.

MICHELIN® X® TWEEL® TURF CASTER: The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.

BacVac Bagger: Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.

3-Bag Powered Bagger: Easy-on, easy-off blower and hopper assemblies. Holds 12 bushels.

Steering Lever Extension Kit: Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.

Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.

Stripe Kit: Helps provide a professional manicured finish to your lawn.

Key Specs

Engine Manufacturer: Vanguard 810cc w/ Oil Guard

Engine Horsepower 26

Transmission: Hydro-Gear® ZT-4400®

Fuel Capacity: Duel fuel tanks w/ 12 gal. total capacity

Ground Speed (Fwd): Up to 12 mph

Cutting Width: 60"

Cutting Height: 1" to 5.5"

Front Tire: 13 x 6.5-6

Drive Tire: 24 x 12-12

Warranty: 5 Year / 1200 Hour (First 2 Years No Hour Limit)

Engine

Engine Manufacturer: Vanguard 810cc w/ Oil Guard

Engine Horsepower: 26

Displacement: 810 cc

Cooling: Air Cooled

Air Cleaner: Canister Style

Engine Warranty: 3 Year Limited

Drive System

Type: Dual Hydrostatic

Transmission: Hydro-Gear® ZT-4400®

Hydraulic Cooling: Transmission mounted fan

Engine Warranty: 3 Year Limited

Fuel Capacity: Duel fuel tanks w/ 12 gal. total capacity

Ground Speed (Fwd): Up to 12 mph

Parking Brake: Integrated with steering levers

General

Seat: I3M Suspension Seat

Cup Holder: Yes

Dimensions

Front Tire (Inches): 13 x 6.5-6

Drive Tire (Inches): 24 x 12-12

Weight (Lbs): 1290-1395

Height (Inches): 49, 72.5 w/ ROPS up

Length (Inches): 84.4

Width W/ Chute up (Inches): 61.6

Tire-To-Tire Width (Inches): 54.5

Productivity (Acres Per Hour): 6.36

Warranty

5 Year / 1200 Hour (First 2 Years No Hour Limit)

Dimensions With Catcher

Catcher Style: 3-bag

Powered / Non-Powered: Powered

Catcher Capacity: 12 bushel

Mower Length W/ Catcher: 111.1"

Mower Width W/ Catcher: 70.9"

Style 2: Catcher Style: BAC-VAC

Style 2: Powered / Non-Powered: Powered

Style 2: Catcher Capacity: 10 bushel

Style 2: Mower Length W/ Catcher: 108.3"

Style 2: Mower Width W/ Catcher: 70.9"
