2025 Hustler Raptor XD Kawasaki FR730 / 60"
Get in Touch
Description

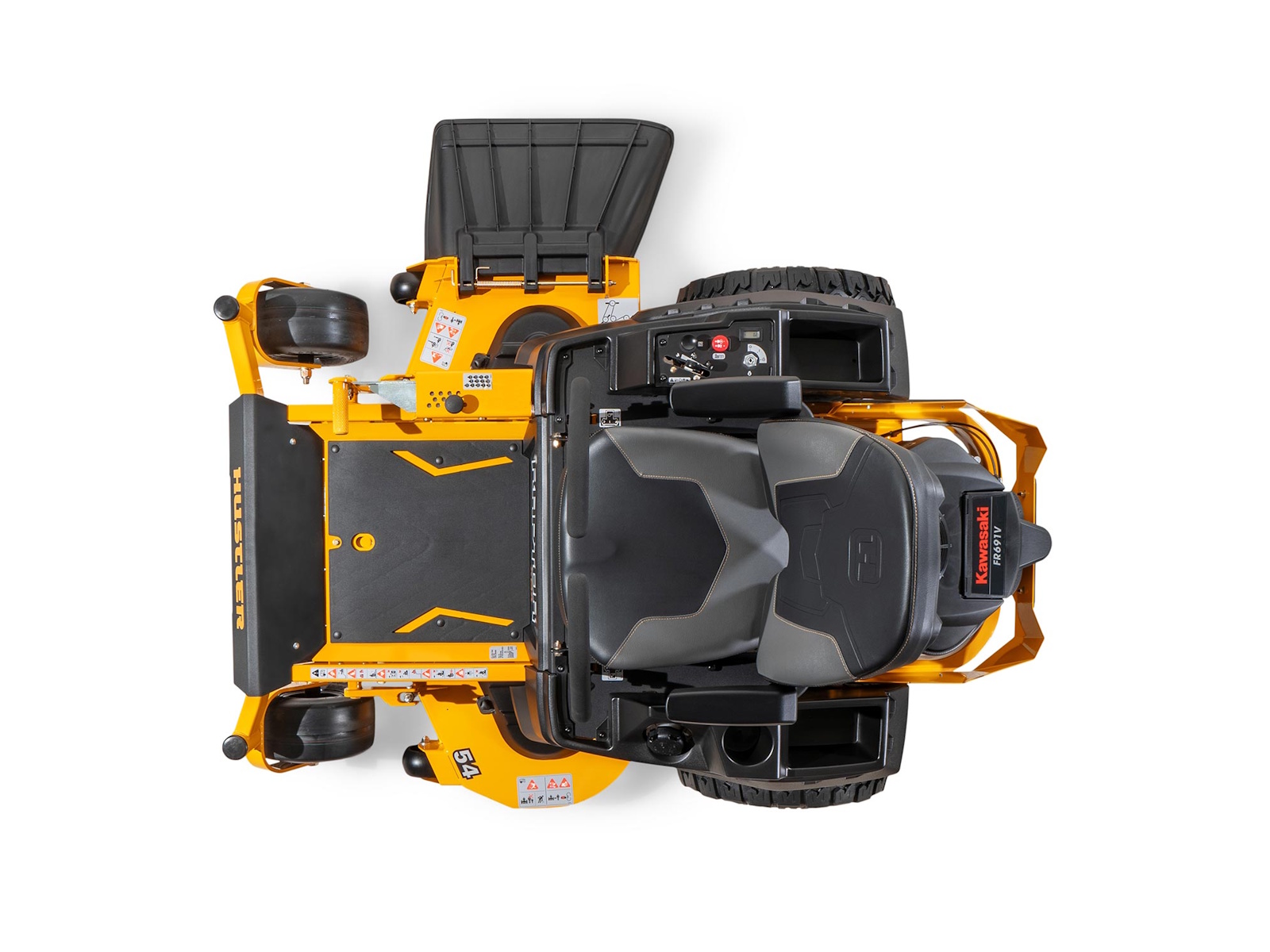

2025 Hustler Raptor XD Kawasaki FR730 / 60"
Raptor XD
The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.
Features May Include:

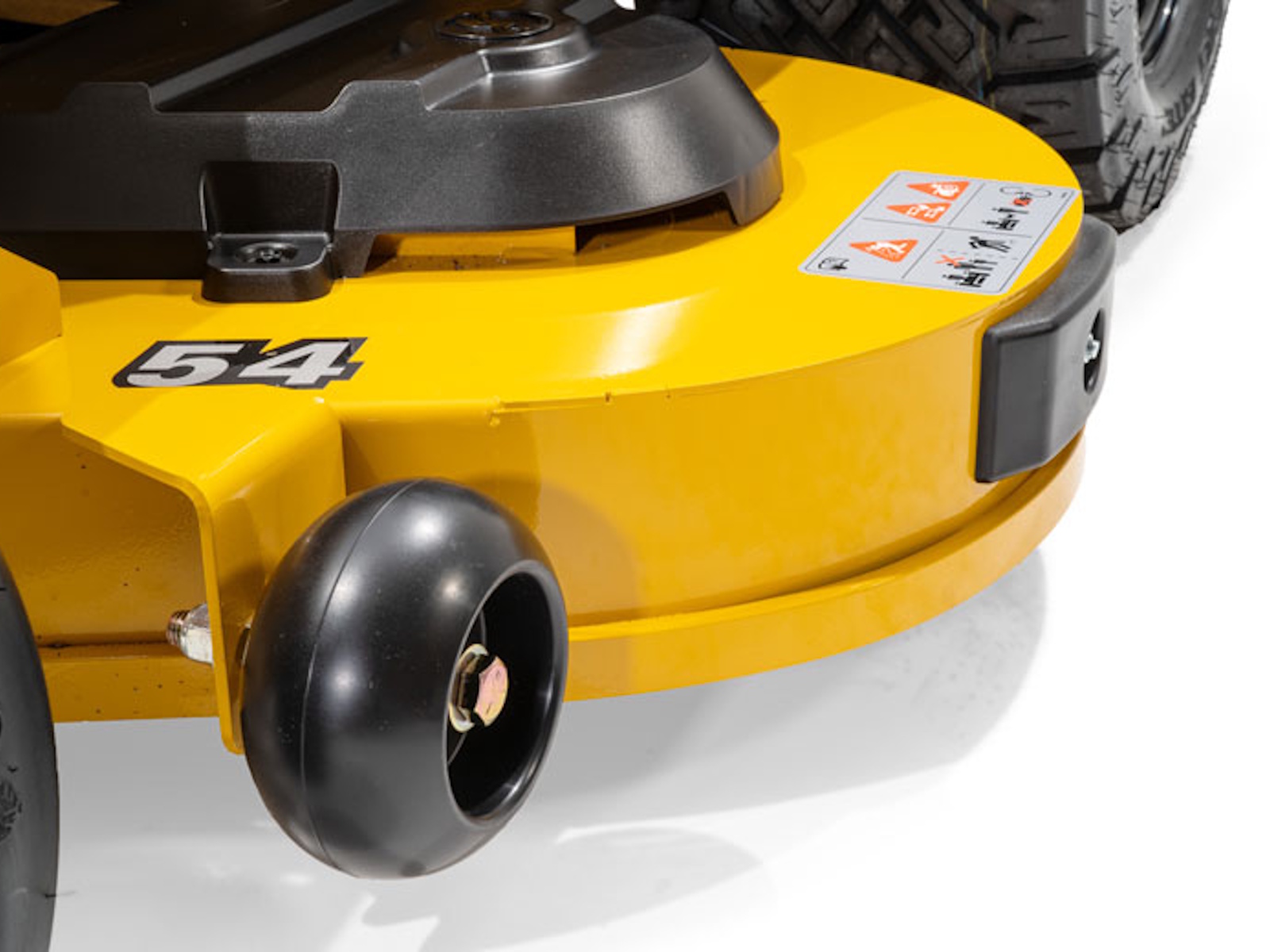

- Welded Steel Deck
Welded fabricated steel deck helps add durability and can extend the mower's life. -
Wider Stance
Designed to provide ample room adding to the comfort for the operator. -
SmoothTrak Steering
Precision control designed to help trim and maneuver easily around obstacles. -
Bolstered Seat
Helps provide a comfortable ride with armrests and airflow to the back. -
Rubber Floor Mat
Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models. -
Fabricated Frame
Continuous one-piece 1½ inch by 3 inch welded tubular frame. -
Foot-Operated Deck Lift
Easily adjust the deck height between 1.5" - 4.5". -
Easy to Service
Flip-up seat pan, removable floor pan, vented pulley covers. -
Exclusive BigBite Rear Tires
We worked directly with the tire manufacturer on this design. -
Kawasaki® Power
Powered by a V-Twin Kawasaki® Engine. -
BigBite™ Rear Tires
We worked directly with the tire manufacturer on this design. -
Bolstered Seat
Bolstered high-back seat with armrests and built-in lumbar support. -
Welded Steel Deck
Welded fabricated steel deck helps add durability & can extend the mower's life. Up to 60" deck size available.
Dealer Notes
Accessories
Stripe Kit: Helps Provide A Professional Manicured Finish To Your Lawn.
Usb Kit: A Kit For Adding A Usb Port To Your Mower.
Hitch Kit: A Kit For Adding A Hitch Receiver To Your Mower.
2-Bag Non-Powered Bagger: The Bagger Has A 5.4 Bushel Capacity.
Steering Lever Extension Kit: Allows Height Adjustment Of Steering Levers To Make Your Mowing Experience As Comfortable As Possible.
Light Kit: Extend Your Productivity Into The Late Hours With Our Optional Light Kit.
Flex Forks®: Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.
Mulch Kit: Recycle Clippings Back Into The Soil And Reclaim Nutrients For Your Lawn.
Key Features
Engine Manufacturer: Kawasaki FR730
Engine Horsepower: 24
Transmission: Hydro-Gear ZT-2800®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 7.5 mph
Cutting Width: 60"
Cutting Height: 1.5" to 4.5"
Front Tire: 13 x 6.5
Drive Tire: 20 x 12-10 BigBite™
Warranty: 3 Year/300 hour residential
Engine
Engine Manufacturer: 60"
Engine Horsepower: Kawasaki FR730
Displacement: 24
Cooling: 726cc
Engine Warranty: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear ZT-2800®
Engine Warranty: 3 Year Warranty
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 7.5 mph
Parking Brake: Integrated with steering levers
General
Seat: Bolstered high-back seat with armrests and built-in lumbar support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 13 x 6.5
Drive Tire (Inches): 20 x 12-10 BigBite™
Weight (Lbs): 680
Height (Inches): 43.7
Length (Inches): 71.1
Width W/ Chute Up (Inches): 64.4
Tire-To-Tire Width (Inches): 48.6
Productivity (Acres Per Hour): 3.64
Warranty
Warranty: 3 Year/300 hour residential
Dimensions w/ Catcher
Catcher Style: 2-bag
Powered / Non-Powered: Non-powered
Catcher Capacity: 5.4 bushel
Mower Length W/ Catcher: 91.4
Mower Width W/ Catcher: 75.5
Info
Industry
Power Equipment / Lawn
Make
Hustler
Model
Raptor XD
Trim
Kawasaki FR730 / 60"
Year
2025
Category
Residential Lawn Mowers
Subcategory
Zero-Turn Mower
Condition
New
Specifications
Engine Type
Kawasaki FR730
Engine Displacement
726cc
Deck Size
60"
Warranty
3 Year/300 hour residential | Engine: 3 Year Warranty
Transmission
Hydro-Gear ZT-2800
Fuel Capacity
3 gal
Tires
Front: 13 x 6.5 | Drive: 20 x 12-10 BigBite
Weight
680
Height
43.7
Length
71.1 | Mower W/ Catcher: 91.4
Width
Chute Up: 64.4 | Tire To Tire: 48.6 | Mower W/ Catcher: 75.5
Power
24 HP
Cutting Width
60"
