2025 Hustler Raptor XDX Kawasaki FR651 / 48"
Raptor XDX
The Raptor® XDX is at the top of Hustler's residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds. The heavy-duty XDX is backed by a 3yr / 300hr limited warranty and 1yr / 300hr commercial limited warranty.
Features May Include:
-
Welded Steel Deck
Welded fabricated steel deck helps add durability and can extend the mower's life. -
Wider Stance
Designed to provide ample room adding to the comfort for the operator. -
SmoothTrak Steering
Precision control designed to help trim and maneuver easily around obstacles. -
Bolstered Seat
Helps provide a comfortable ride with armrests and airflow to the back. -
Rubber Floor Mat
Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models. -
Fabricated Frame
Continuous one-piece 1½ inch by 3 inch welded tubular frame. -
Foot-Operated Deck Lift
Easily adjust the deck height between 1.5" - 4.5". -
Easy to Service
Flip-up seat pan, removable floor pan, vented pulley covers. -
Exclusive BigBite Rear Tires
We worked directly with the tire manufacturer on this design. -
Kawasaki® Power
Powered by a V-Twin Kawasaki® Engine. -

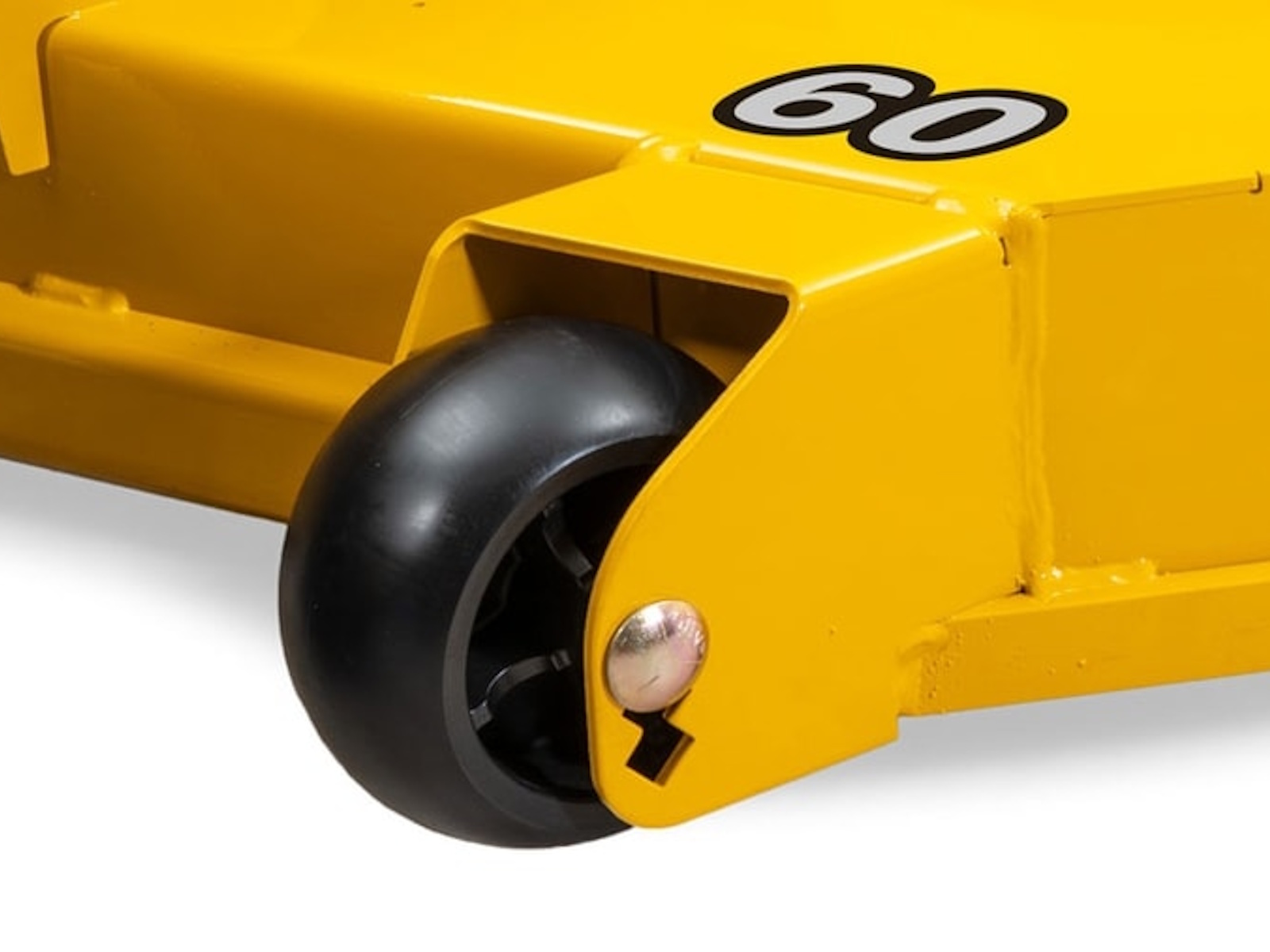

Commercial Grade Deck
10 gauge steel and 11 gauge front bull nose bumper designed for durability. Up to 60” deck sizes available. -
Extra High-back Seat
An extra high-back seat (compared to the Raptor X seat) with armrests. -
22" BigBite™ Tires
Aggressive tire to help handle tough jobs.
Dealer Notes
Accessories
Stripe Kit: Helps Provide A Professional Manicured Finish To Your Lawn.
Usb Kit: A Kit For Adding A Usb Port To Your Mower.
Deck Lift Assist: Adjustable Spring Deck Lift Kit To Assist In Raising And Lowering Deck.
High Vacuum Deck Kit: Improves Vacuum And Cut Quality While Reducing Blowout In Thin/Dry Grass Conditions.
Hitch Kit: A Kit For Adding A Hitch Receiver To Your Mower.
2-Bag Powered Bagger: Bagger Has A 7.2 Bushel Capacity.
Mesh Side Bagger: Easy-on, easy-off bagger has a 3-bushel capacity. (36" deck only on Super S)
Steel Side Bagger: Easy-On, Easy-Off Bagger Has A 3.5 Bushel Capacity.
Steering Lever Extension Kit: Allows Height Adjustment Of Steering Levers To Make Your Mowing Experience As Comfortable As Possible.
Light Kit: Extend Your Productivity Into The Late Hours With Our Optional Light Kit.
Flex Forks®: Shock Absorbing Front Caster Forks Improve Operator Comfort And Provide A More Even Cut, Especially Over Uneven Terrain And At Higher Speeds.
Mulch Kit: Recycle Clippings Back Into The Soil And Reclaim Nutrients For Your Lawn.
Key Features
Engine Manufacturer: Kawasaki FR651
Engine Horsepower: 21.5
Transmission: Hydro-Gear ZT-3100®
Fuel Capacity: 3 gal.
Ground Speed (Fwd): Up to 8 mph
Cutting Width: 48"
Cutting Height: 1.5" to 4.5"
Front Tire: 13 x 6.5
Drive Tire: 22 x 9.5-10 BigBite™
Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
Engine
Engine Manufacturer: Kawasaki FR651
Engine Horsepower: 21.5
Displacement: 726cc
Cooling: Air Cooled
Engine Warranty: 3 Year Warranty
Drive System
Type: Dual Hydrostatic
Transmission: Hydro-Gear Zt-3100®
Engine Warranty: 3 Year Warranty
Fuel Capacity: 3 Gal.
Ground Speed (Fwd): Up To 8 Mph
Parking Brake: Integrated With Steering Levers
General
Seat: Bolstered Extra High-Back Seat With Armrests And Built-In Lumbar Support
Cup Holder: Yes
Dimensions
Front Tire (Inches): 13 X 6.5
Drive Tire (Inches): 22 X 9.5-10 Bigbite™
Weight (Lbs): 646
Height (Inches): 43.7
Length (Inches): 71.1
Width W/ Chute Up (Inches): 50.6
Tire-To-Tire Width (Inches): 45.8
Productivity (Acres Per Hour): 3.10
Warranty
Warranty: 3 Year/300 Hour Residential Or 1 Year/300 Hour Commercial
Dimensions w/ Catcher
Catcher Style: 2-Bag
Powered / Non-Powered: Powered
Catcher Capacity: 7.2 bushel
Mower Length W/ Catcher: 92.3
Mower Width W/ Catcher: 57.2
Info
Industry
Power Equipment / Lawn
Make
Hustler
Model
Raptor XDX
Trim
Kawasaki FR651 / 48"
Year
2025
Category
Residential Lawn Mowers
Subcategory
Zero-Turn Mower
Condition
New
Specifications
Engine Type
Kawasaki FR651
Deck Size
48"
Power
21.5 HP
Engine Displacement
726cc
Warranty
Residential: 3 Year/300 hour | Commercial: 3 Year/300 hour | Engine: 3 Year Warranty
Transmission
Hydro-Gear ZT-3100
Fuel Capacity
3 gal
Tires
Front: 13 x 6.5 | Drive: 22 x 9.5-10 BigBite
Weight
646
Height
43.7
Length
71.1 | Mower W/ Catcher: 92.3
Width
Chute Up: 50.6 | Tire To Tire: 45.8 | Mower W/ Catcher: 57.2
Cutting Width
48"
